Especificações Técnicas

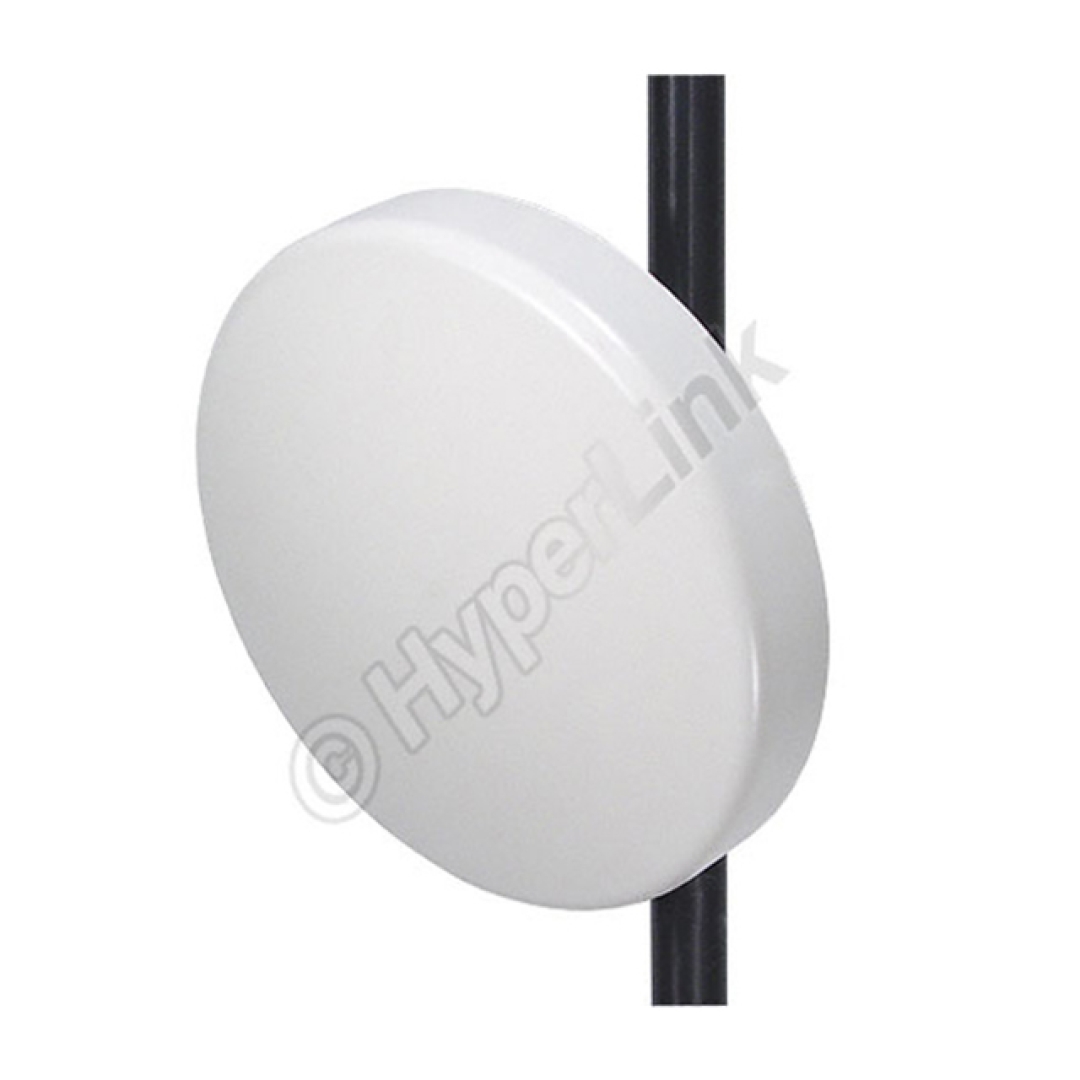

ELECTRICAL SPECIFICATIONS FREQUENCY 3350-3600 MHZ GAIN 16 DBI HORIZONTAL BEAM WIDTH 25 DEGREES VERTICAL BEAM WIDTH 28 DEGREES FRONT TO BACK RATIO >30 DB IMPEDANCE 50 OHM VSWR < 1.4:1 AVG. MAXIMUM INPUT POWER 50 WATTS LIGHTNING PROTECTION DC GROUND CONNECTOR INTEGRAL N-FEMALE   MECHANICAL SPECIFICATIONS WEIGHT 2 LBS. (.90 KG) DIMENSIONS DIAMETER X DEPTH 9.7 X 2.2 (INCHES) 246 X 56 (MM) RADOME MATERIAL UV-INHIBITED POLYMER OPERATING TEMPERATURE -40° C TO TO 85° C (-40° F TO 185° F) MOUNTING 2" (50.8 MM) DIA. MAST MAX. POLARIZATION VERTICAL AND HORIZONTAL WIND SURVIVAL >130 MPH (210 KM/H) ROHS COMPLIANT YES   WIND LOADING DATA WIND SPEED (MPH) LOADING 100 16 LB. 125 27 LB.   HG3516D ANTENA BACKFIRE HYPERLINK 16DBI MAIORES DETALHES DE HG3516D NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE HG3516D: HG3516D, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, ANTENA 16DBI, 16DBI, ANTENA 16 DBI, 16 DBI

Informações Adicionais
