Especificações Técnicas

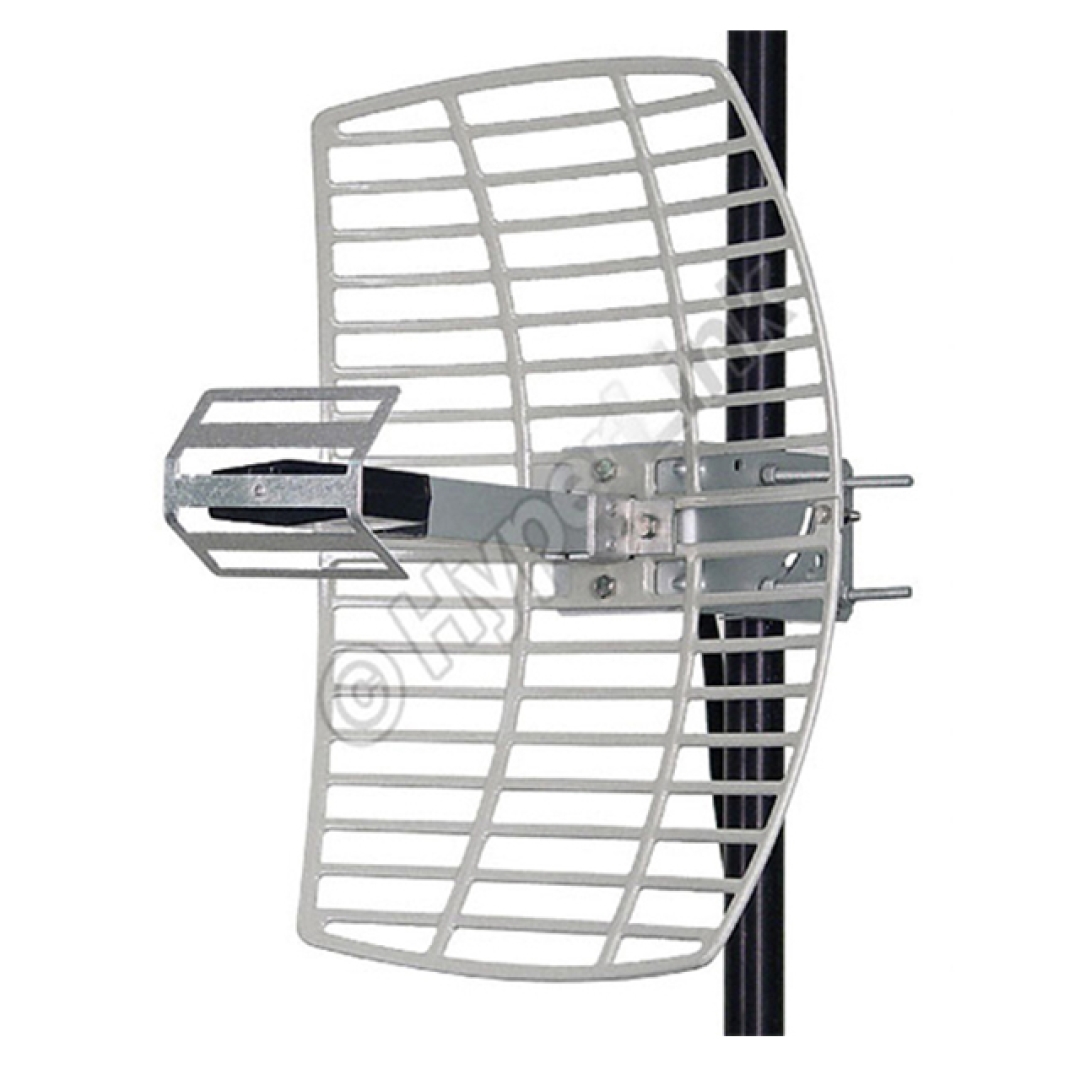

ELECTRICAL SPECIFICATIONS FREQUENCY 2400-2500 MHZ GAIN 15 DBI HORIZONTAL BEAM WIDTH 16° VERTICAL BEAM WIDTH 21° POLARIZATION HORIZONTAL OR VERTICAL FRONT TO BACK RATIO 20 DB IMPEDANCE 50 OHM MAX. INPUT POWER 100 WATTS VSWR < 1.5:1 AVG. LIGHTNING PROTECTION DC SHORT   MECHANICAL SPECIFICATIONS WEIGHT 3 LBS. (1.4 KG) GRID DIMENSIONS 11.8" (300 MM) X 15.7" (400 MM) MOUNTING 1.25 IN. THRU 2 IN. (31.8 - 50.8 MM) DIAMETER MAST MAX. ELEVATION ANGLE 0 TO +15° OPERATING TEMPERATURE -40° C TO TO 85° C (-40° F TO 185° F) ROHS COMPLIANT YES   WIND LOADING DATA WIND SPEED (MPH) LOADING   100 10.0 LB. 120 15.6 LB.       HG2415G-NF ANTENA DIRECIONAL HYPERLINK HG2415G-NF GRADE - 2,4GH MAIORES DETALHES DE HG2415G-NF NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE HG2415G-NF: HG2415G-NF, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, 15DBI, 15 DBI, ANTENA 15 DBI, ANTENA 15DBI

Informações Adicionais
