Especificações Técnicas

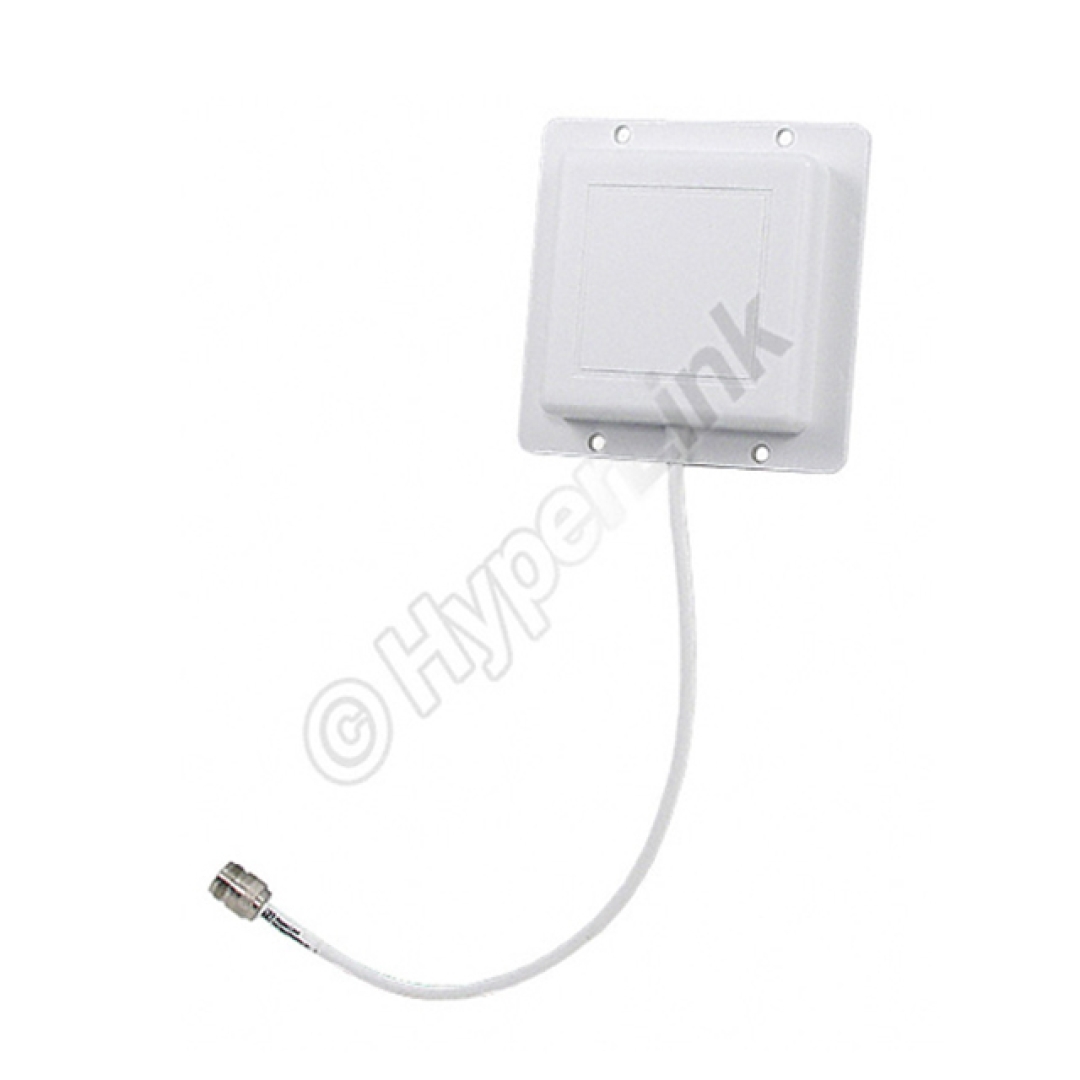

ELECTRICAL SPECIFICATIONS   FREQUENCY 2400-2500 MHZ GAIN 8 DBI HORIZONTAL BEAM WIDTH 75 DEGREES VERTICAL BEAM WIDTH 65 DEGREES IMPEDANCE 50 OHM MAX. INPUT POWER 25 WATTS VSWR < 1.5:1 AVG. LIGHTNING PROTECTION DC SHORT   MECHANICAL SPECIFICATIONS WEIGHT 0.4 LBS. (.18 KG) DIMENSIONS 4.5 X 4.5 X .9 INCHES 114 X 114 X 23 MM RADOME MATERIAL UV-INHIBITED POLYMER FLAME RATING UL 94HB OPERATING TEMPERATURE -40° C TO TO 85° C (-40° F TO 185° F) MOUNTING FOUR ¼ IN. (6.3 MM) HOLES POLARIZATION HORIZONTAL OR VERTICAL ROHS COMPLIANT YES WIND SURVIVAL >150 MPH (241 KPH)   WIND LOADING DATA WIND SPEED (MPH) LOADING 100 5 LB. 125 7 LB.   HG2409P-NF ANTENA FLAT PATCH HYPERLINK 2.4 GHZ ISM TAGS DE HG2409P-NF: HG2409P-NF, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, 8DBI, ANTENA 8DBI, 8 DBI, ANTENA 8 DBI

Informações Adicionais
