Especificações Técnicas

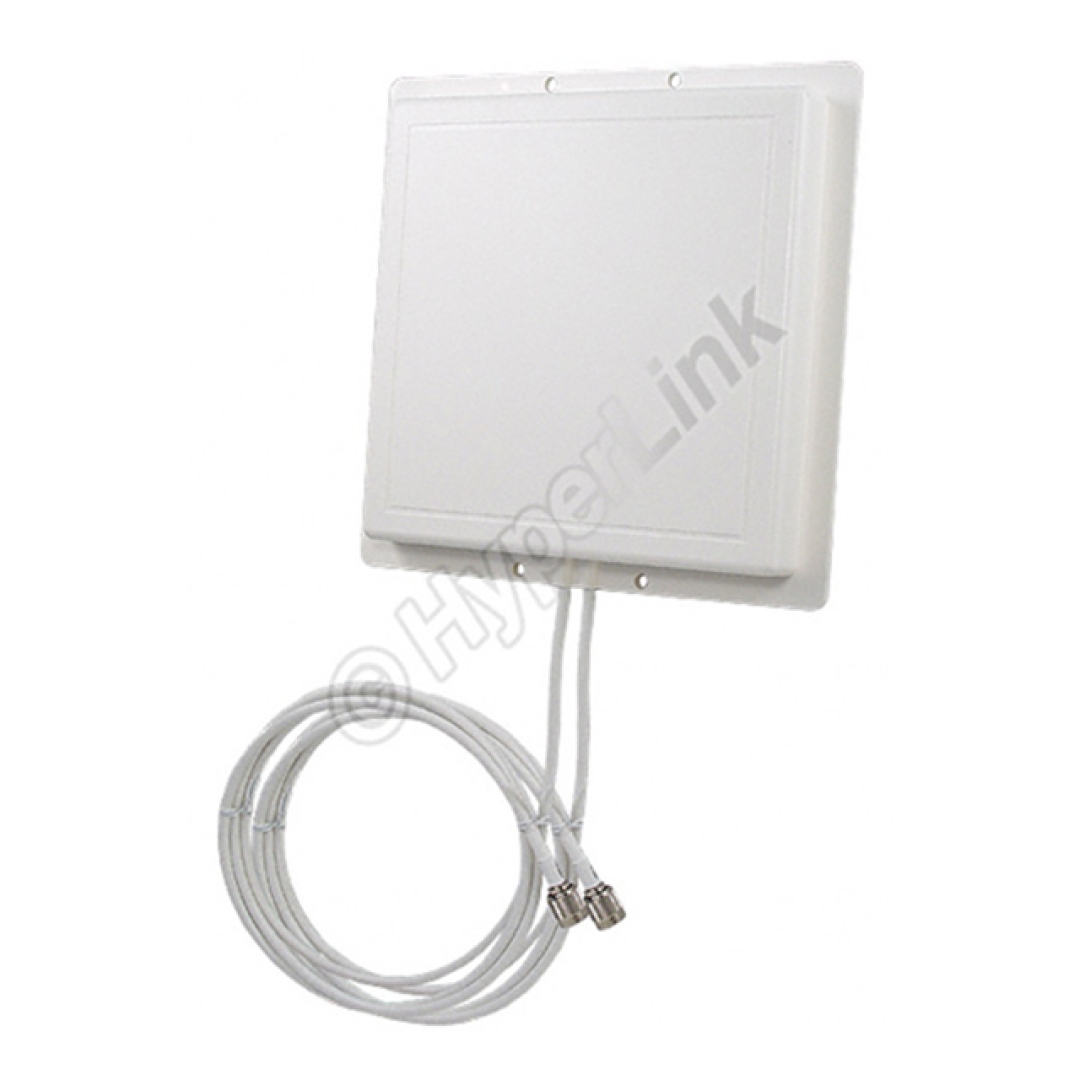

ELECTRICAL SPECIFICATIONS FREQUENCY 2400-2500 MHZ GAIN: ANTENNA 1 / ANTENNA 2 11 DBI / 11 DBI HORIZONTAL BEAM WIDTH (ANTENNAS 1 & 2) 60 DEGREES VERTICAL BEAM WIDTH (ANTENNAS 1 & 2) 30 DEGREES IMPEDANCE 50 OHM MAX. INPUT POWER 25 WATTS VSWR < 1.5:1 AVG.     MECHANICAL SPECIFICATIONS WEIGHT .95 LBS. (.43 KG) DIMENSIONS 8.5 X 8.5 X 1 (INCHES) 216 X 216 X 26 (MM) RADOME MATERIAL UV-INHIBITED POLYMER FLAME RATING UL 94HB ROHS COMPLIANT YES OPERATING TEMPERATURE -40° C TO TO 85° C (-40° F TO 185° F) MOUNTING FOUR ¼ IN. (.63 MM) HOLES POLARIZATION HORIZONTAL (LEFT ANTENNA LEAD) VERTICAL (RIGHT ANTENNA LEAD) WIND SURVIVAL >150 MPH (241 KPH)     WIND LOADING DATA WIND SPEED (MPH) LOADING 100 16 LB. 125 26 LB.     RE11DP-RTP ANTENA FLAT PATCH HYPERLINK 2.4GHZ 11DBI MAIORES DETALHES DE RE11DP-RTP NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE RE11DP-RTP: RE11DP-RTP, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, 11DBI, ANTENA 11DBI, 11 DBI, ANTENA 11 DBI

Informações Adicionais
