Especificações Técnicas

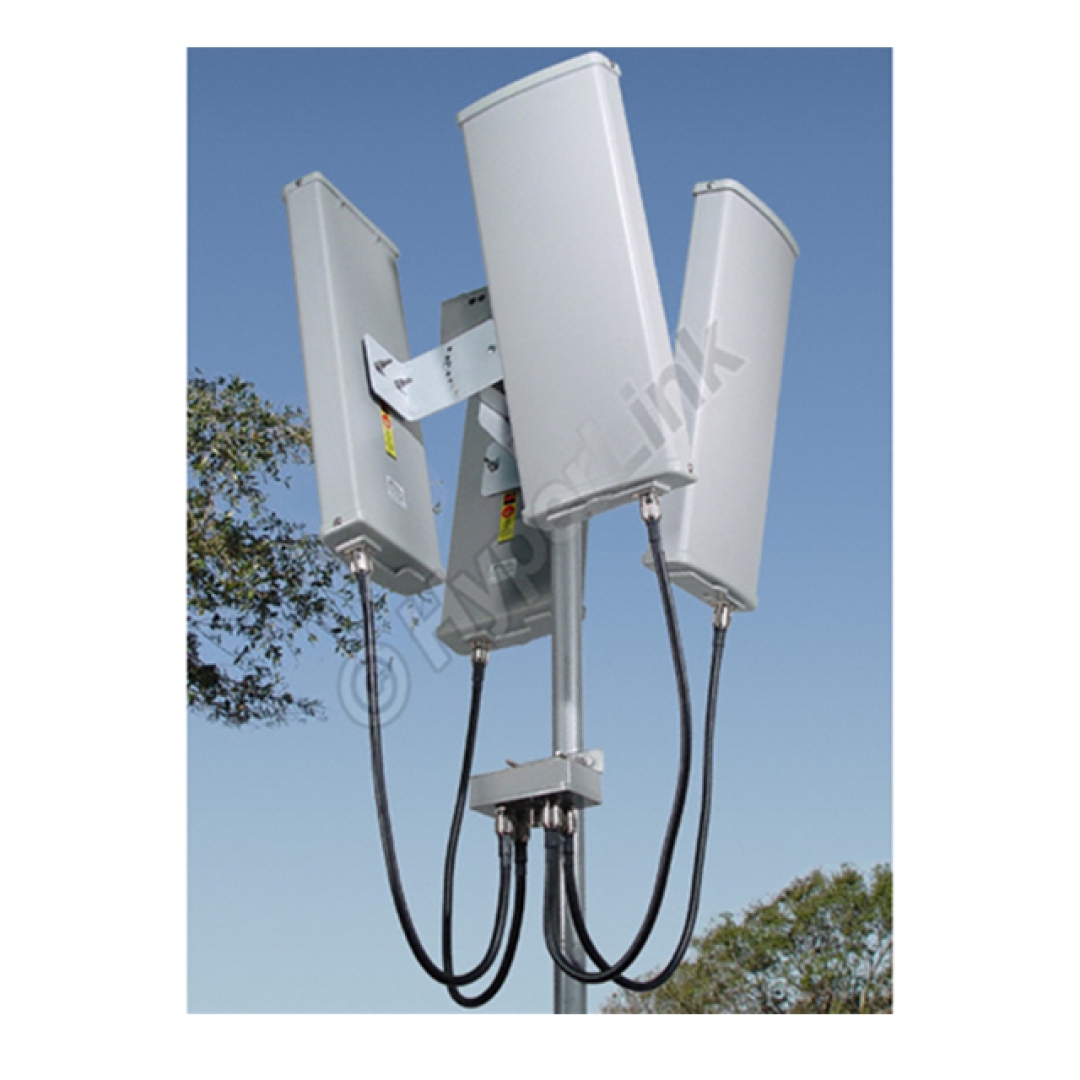

SPECIFICATIONS MODEL HK5417-090 FREQUENCY 5470 - 5725 MHZ ANTENNA GAIN 17 DBI* POLARIZATION VERTICAL HORIZONTAL BEAM WIDTH (INDIVIDUAL ANTENNA) 90° VERTICAL BEAM WIDTH (INDIVIDUAL ANTENNA) 8° LIGHTNING PROTECTION DC GROUND POWER RATING (INDIVIDUAL ANTENNA) 100 WATTS ANTENNA RADOME MATERIAL UV-INHIBITED PLASTIC MOUNTING SYSTEM MATERIAL STAINLESS STEEL MOUNTING (ROUND MAST) 1¼" TO 2" (31.7 TO 50.8 MM) DIA. DIMENSIONS **(O.D. PANELS FULLY RETRACTED) 14.5 " (370 MM) X 18".7 (476 MM) O.D.** WEIGHT 10 LBS. (4.5 KG) ROHS COMPLIANT YES * ANTENNA GAINS SPECIFIED WHEN SECTORS ARE INDIVIDUALLY FED.     HK5417-090 ANTENA HYPERLINK HK5417-090 - 5,4GHZ MAIORES DETALHES DE HK5417-090 NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE HK5417-090: HK5417-090, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, 17DBI, 17 DBI, ANTENA 17DBI, ANTENA 17 DBI

Informações Adicionais
