ANTENA OMNIDIRECIONAL 12DBI
REFERÊNCIA: HG2412U-PRO | CÓDIGO: 190076 | MARCA: HYPERLINK TECHNOLOGIES

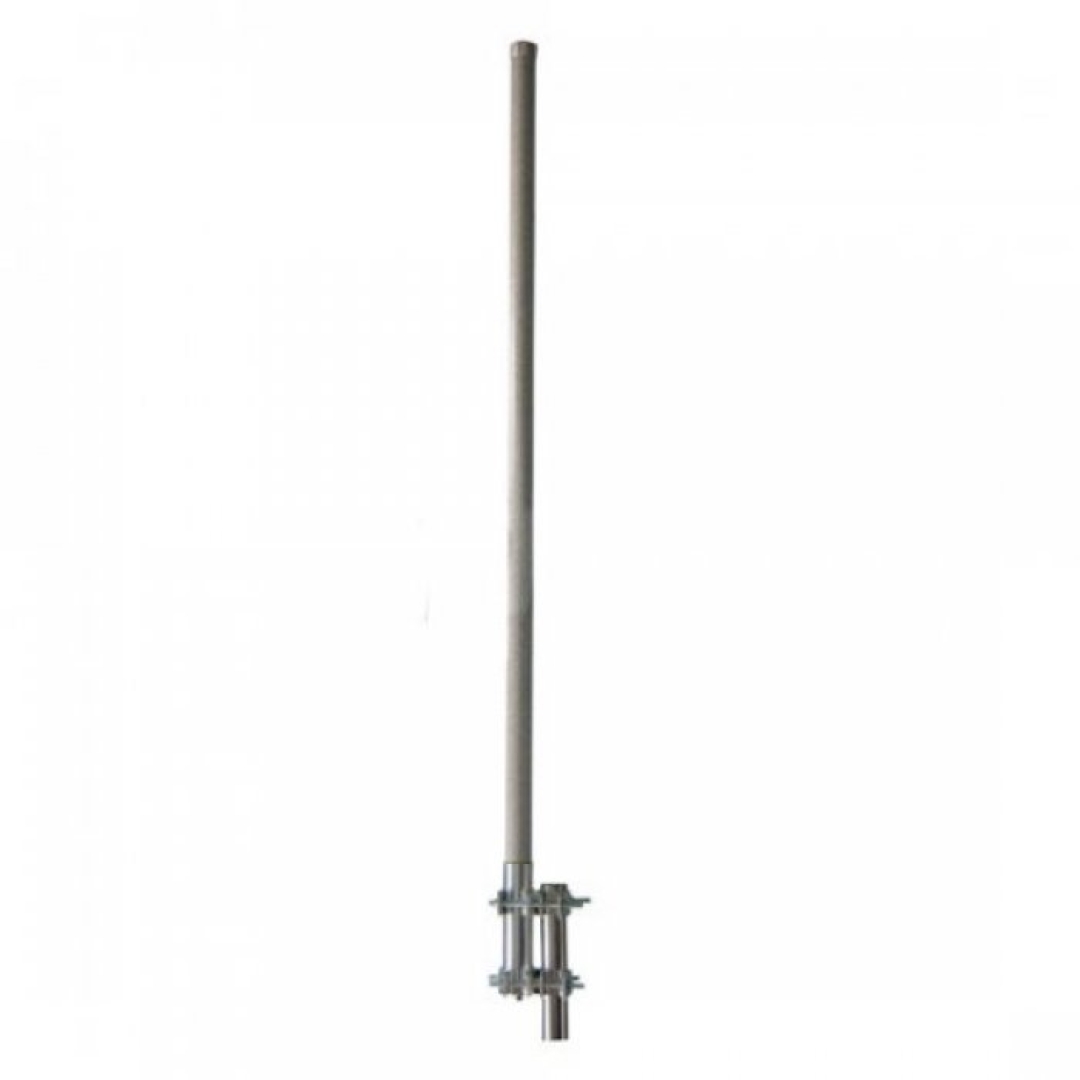

![](https://www.southsafe.com.br/assets/img/produtos/antena-omnidirecional-12dbi-1698099437.jpeg)
ANTENA OMNIDIRECIONAL 12DBI
REFERÊNCIA: HG2412U-PRO | CÓDIGO: 190076 | MARCA: HYPERLINK TECHNOLOGIES
R$1.987,93
à vista no Pix, boleto ou em 10x cartão de crédito
Calcular frete e prazo
Especificações Técnicas
PROFESSIONAL GRADE THE HYPERLINK HG2412U-PRO IS A PROFESSIONAL GRADE OMNI-DIRECTIONAL ANTENNA THAT CAN BE USED FOR COMMERCIAL INSTALLATIONS. THE ANTENNA FEATURES HIGH GAIN AND SUPERIOR VSWR. THE UNIT IS OPTIMIZED FOR THE 2.4GHZ ISM BAND. SUPERIOR PERFORMANCE A COLLINEAR OMNI-DIRECTIONAL ANTENNA THAT UTILIZES A CENTER FED COLLINEAR DIPOLE ARRAY OFFERS SUPERIOR PERFORMANCE OVER THE TRADITIONAL BOTTOM FED COLLINEAR DESIGNS. A CENTER FED COLLINEAR HAS RADIATING ELEMENTS THAT ARE MORE UNIFORMLY FED WITH SIGNALS OF THE PROPER AMPLITUDE AND PHASE. IN A BOTTOM FED DESIGN, THE SIGNALS THAT REACH THE UPPER ELEMENTS HAVE UNDERGONE SIGNIFICANT AMPLITUDE AND PHASE DEGRADATION. IN MOST CASES, THE UPPER ELEMENTS OF AN END FED DESIGN CONTRIBUTE LITTLE TO THE ANTENNAS FINAL COMPOSITE GAIN AND PATTERN. IN THE HG2412U-PRO, AN INTERNAL COPPER HARD-LINE PROVIDES A LOW LOSS PATH TO THE ANTENNAS CENTRAL SPLITTING AND PHASING COMPONENT. THE BRASS RADIATING ELEMENTS UTILIZE AN AIR DIELECTRIC FOR LOWEST LOSS AND SUPERIOR RADIATING EFFICIENCY. THE DESIGN IS FACTORY TUNED FOR SUPERIOR PERFORMANCE. RUGGED AND WEATHERPROOF THIS ANTENNAS CONSTRUCTION FEATURES A DURABLE FIBERGLASS RADOME FOR DURABILITY AND AESTHETICS. ITS MOUNTING SYSTEM FEATURES TWIN HEAVY-DUTY MOUNTING BRACKETS AND U-BOLTS FOR SUPERIOR STRENGTH. THE THICK BRASS ELEMENTS PROVIDE LONG LIFE IN HOSTILE ENVIRONMENTS. HG2412U-PRO HYPERLINK ANTENA OMNIDIRECIONAL 12DBI TAGS DE HG2412U-PRO: HG2412U-PRO, HG2412U PRO, HG2412UPRO, ANTENA 12DBI, ANTENA 12 DBI, ANTENA 2.4GHZ 12DBI, ANTENAS WIRELESS, ANTENA HYPERLINK OMNI, ANTENA OMNI 12DBI, ANTENA N-FEMEA 12DBI, HYPERLINK TECHNOLOGIESInformações Adicionais
Referência | HG2412U-PRO |
Código do Fabricante | HG2412U-PRO |
Código Southsafe | 190076 |
Marca | HYPERLINK TECHNOLOGIES |
Unidade de Venda | PÇ |
Peso | 1.000 Kg |
