Especificações Técnicas

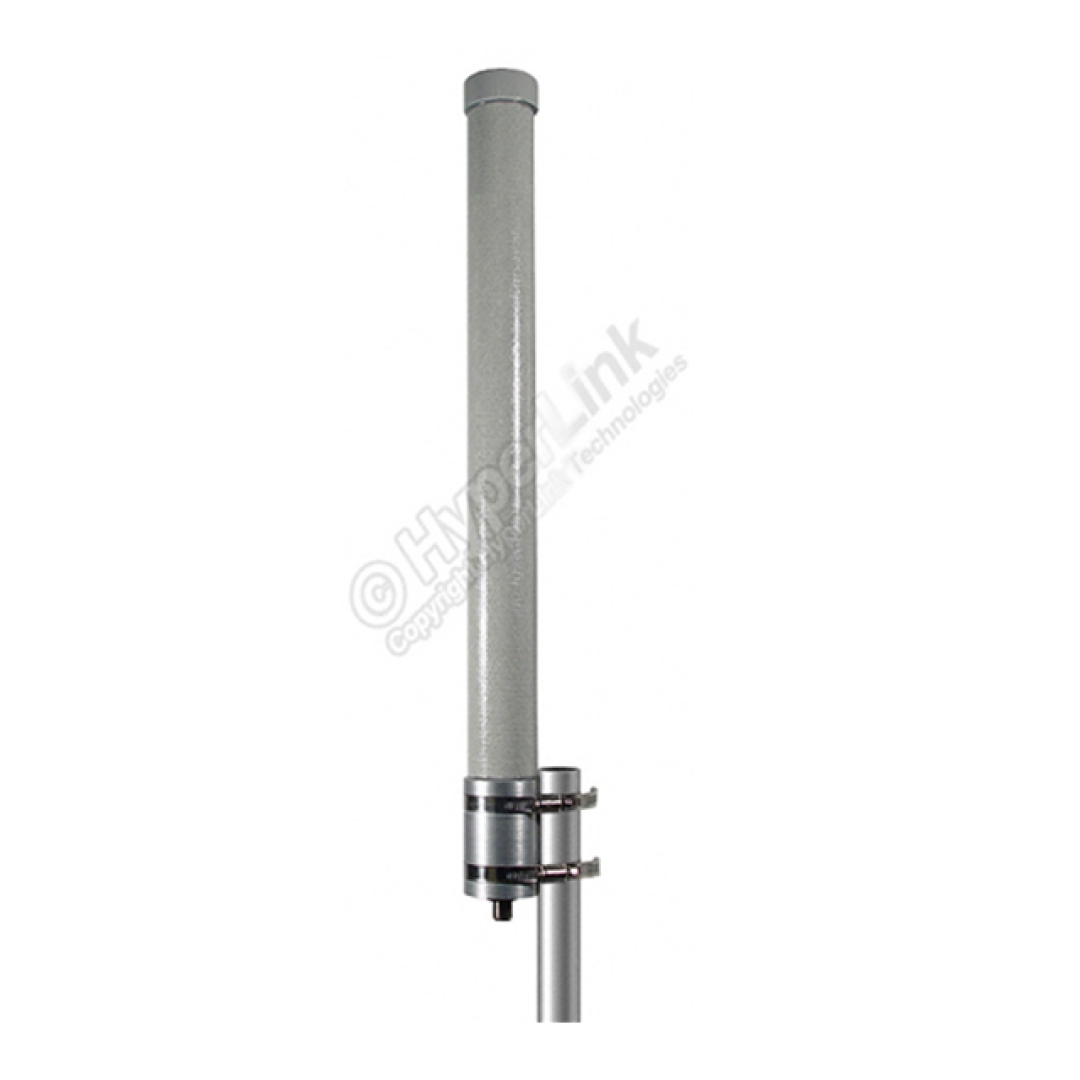

ELECTRICAL SPECIFICATIONS FREQUENCY 3400-3700 MHZ GAIN 11 DBI POLARIZATION VERTICAL DOWNTILT 0° VERTICAL BEAM WIDTH 9° HORIZONTAL BEAM WIDTH 360° IMPEDANCE 50 OHM MAX. INPUT POWER 150 WATTS VSWR < 1.6:1 AVG. LIGHTNING PROTECTION DC GROUND     MECHANICAL SPECIFICATIONS WEIGHT 1.5 LBS (0.7KG) LENGTH 24.4 IN. (0.6M) BASE DIAMETER 2.28 IN. (57.9MM) RADOME DIAMETER 2.04 IN. (51.8MM) RADOME MATERIAL FIBERGLASS MOUNTING 1.4 IN. (35 MM) TO 2.0 IN. (50 MM) DIA MAST RATED WIND VELOCITY 137 MPH/S (220KM/S) OPERATING TEMPERATURE -40° C TO TO 85° C (-40° F TO 185° F) CONNECTOR INTEGRAL N-FEMALE ROHS COMPLIANT YES     WIND LOADING DATA WIND SPEED (MPH) LOADING   100 6 LB. 125 10 LB.     HG3511U-PRO ANTENA OMNIDIRECIONAL HYPERLINK 3.5GHZ MAIORES DETALHES DE HG3511U-PRO NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE HG3511U-PRO: HG3511U-PRO, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, 11DBI, ANTENA 11DBI, 11 DBI, ANTENA 11 DBI, ANTENA

Informações Adicionais
