Especificações Técnicas

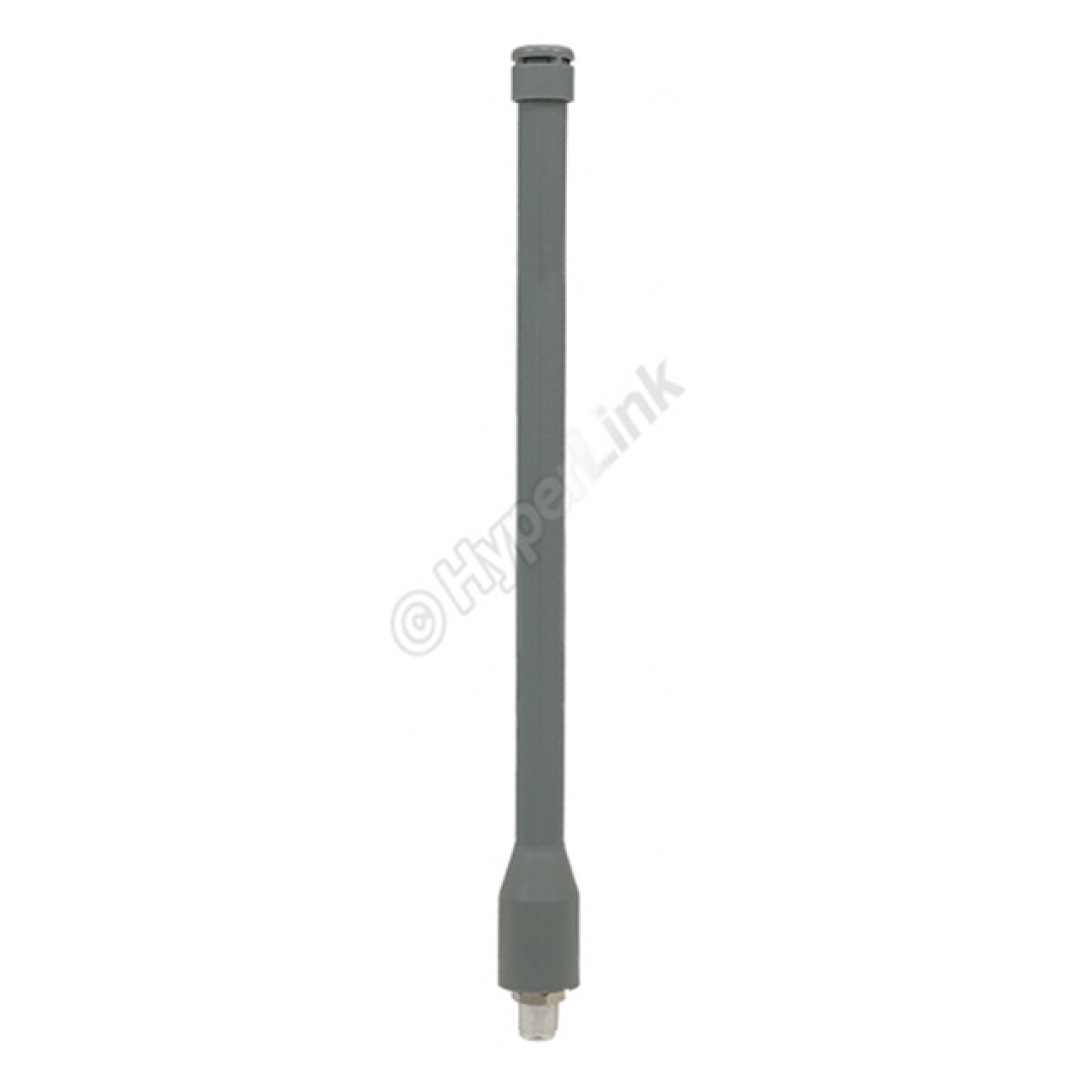

FREQUENCY 2400-2500 MHZ GAIN 6 DBI POLARIZATION VERTICAL VERTICAL BEAM WIDTH 28 ° HORIZONTAL BEAM WIDTH 360° IMPEDANCE 50 OHM MAX. INPUT POWER 100 WATTS VSWR < 1.5:1 AVG. WEIGHT .24 LBS. (0.1 KG) LENGTH 12 IN. (30 CM) BASE DIAMETER 1.27 IN. (3.22 CM) RADOME DIAMETER .75 IN. (1.90 CM) RADOME MATERIAL GRAY FIBERGLASS WIND SURVIVAL >150 MPH OPERATING TEMPERATURE -40° C TO TO 85° C (-40° F TO 185° F) CONNECTOR INTEGRAL N-TYPE FEMALE (BULKHEAD TYPE) ROHS COMPLIANT YES     WIND LOADING DATA WIND SPEED (MPH) LOADING 100 2 LB. 125 3 LB.     HGV2406U ANTENA OMNIDIRECIONAL HYPERLINK MAIORES DETALHES DE HGV2406U NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE HGV2406U: HGV2406U, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, ANTENA 6DBI, 6DBI, ANTENA 6 DBI, 6 DBI, ANTENA, HGV-2406U
