Especificações Técnicas

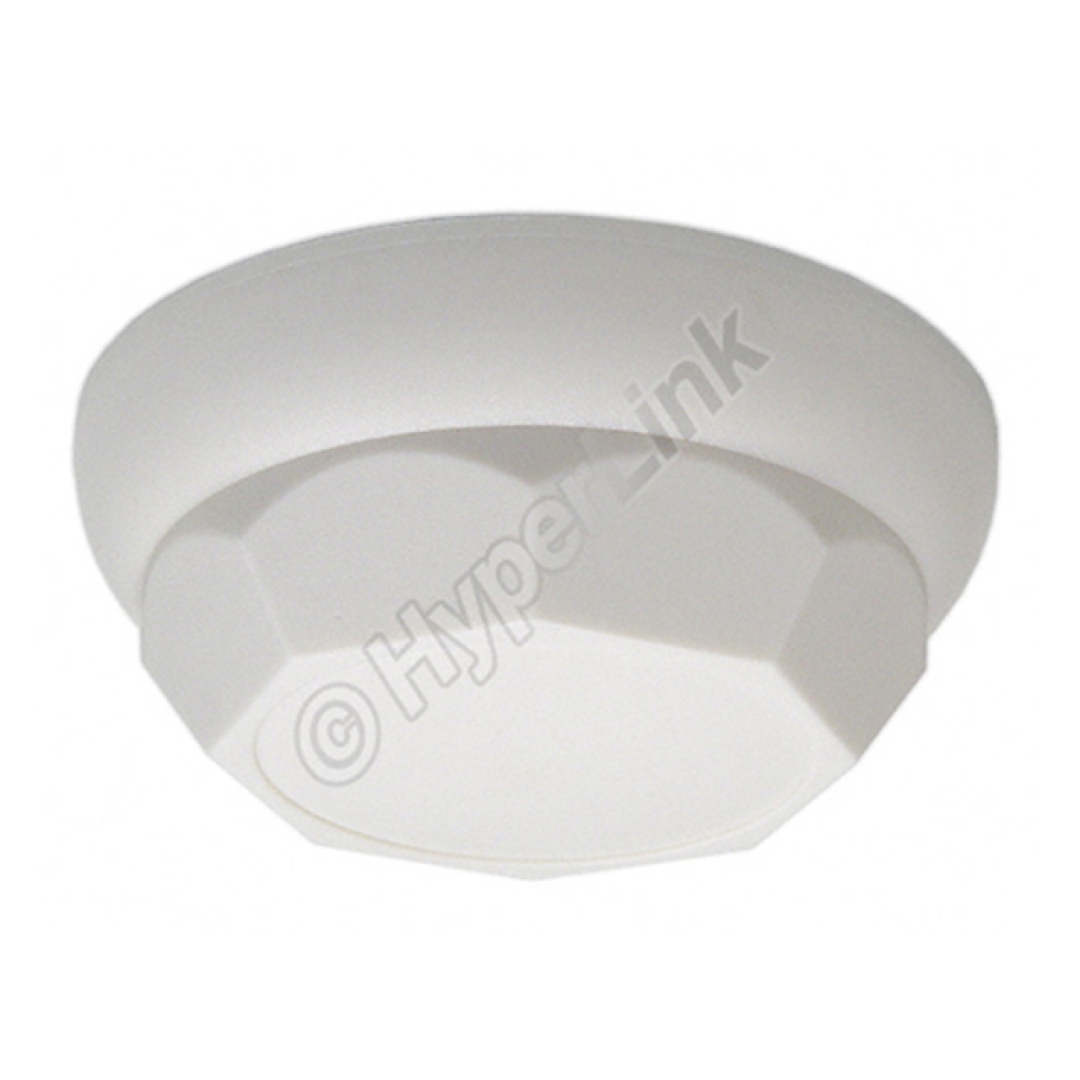

ELECTRICAL SPECIFICATIONS FREQUENCY RANGE 2300-6000 MHZ GAIN 3 DBI HORIZONTAL BEAM WIDTH 360 DEGREES VERTICAL BEAM WIDTH 90 DEGREES IMPEDANCE 50 OHM MAX. INPUT POWER 50 WATT VSWR < 1.5:1 AVG. LIGHTNING PROTECTION DC GROUNDED     MECHANICAL SPECIFICATIONS WEIGHT 0.3 LBS. (.13 KG) DIMENSIONS 4.9" (125 MM) DIA X 1.8" (46 MM) OPERATING TEMPERATURE -40° C TO TO 85° C (-40° F TO 185° F) MOUNTING .687" (17.4 MM) DIAMETER HOLE POLARIZATION VERTICAL ROHS COMPLIANT YES     HG2458CU-NF ANTENA OMNIDIRECIONAL DE TETO HYPERLINK MAIORES DETALHES DE HG2458CU-NF NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE HG2458CU-NF: HG2458CU-NF, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, 3DBI, ANTENA 3DBI, 3 DBI, ANTENA 3 DBI
