Especificações Técnicas

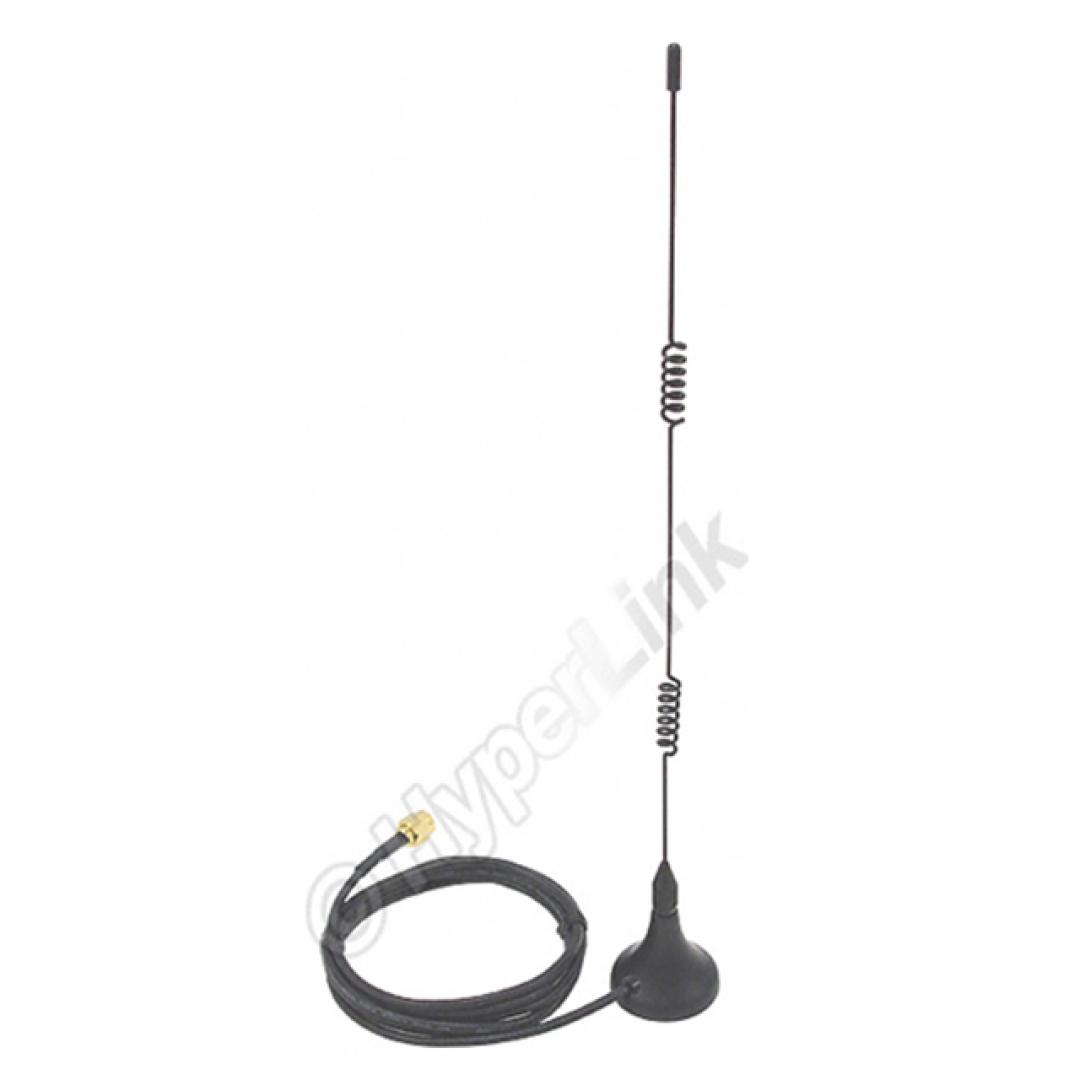

ELECTRICAL SPECIFICATIONS FREQUENCY 2360-2500 MHZ GAIN 7 DBI IMPEDANCE 50 OHM VSWR < 1.8:1 AVG. MAXIMUM INPUT POWER 10 W   MECHANICAL SPECIFICATIONS POLARIZATION VERTICAL VERTICAL BEAM WIDTH 40° HORIZONTAL BEAM WIDTH 360° WEIGHT 0.5 LBS. (230 G) LENGTH 10.2 IN. (259 MM) BASE DIAMETER 1.1 IN. (28 MM) OPERATING TEMPERATURE -40° C TO TO 85° C (-40° F TO 185° F) MOUNTING MAGNETIC BASE ROHS COMPLIANT YES   RE07U-RSP ANTENA OMNIDIRECIONAL HYPERLINK RE07U-RS MAIORES DETALHES DE RE07U-RSP NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE RE07U-RSP: RE07U-RSP, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, ANTENA 7DBI, 7DBI, ANTENA 7 DBI, 7 DBI, ANTENA

Informações Adicionais
