Especificações Técnicas

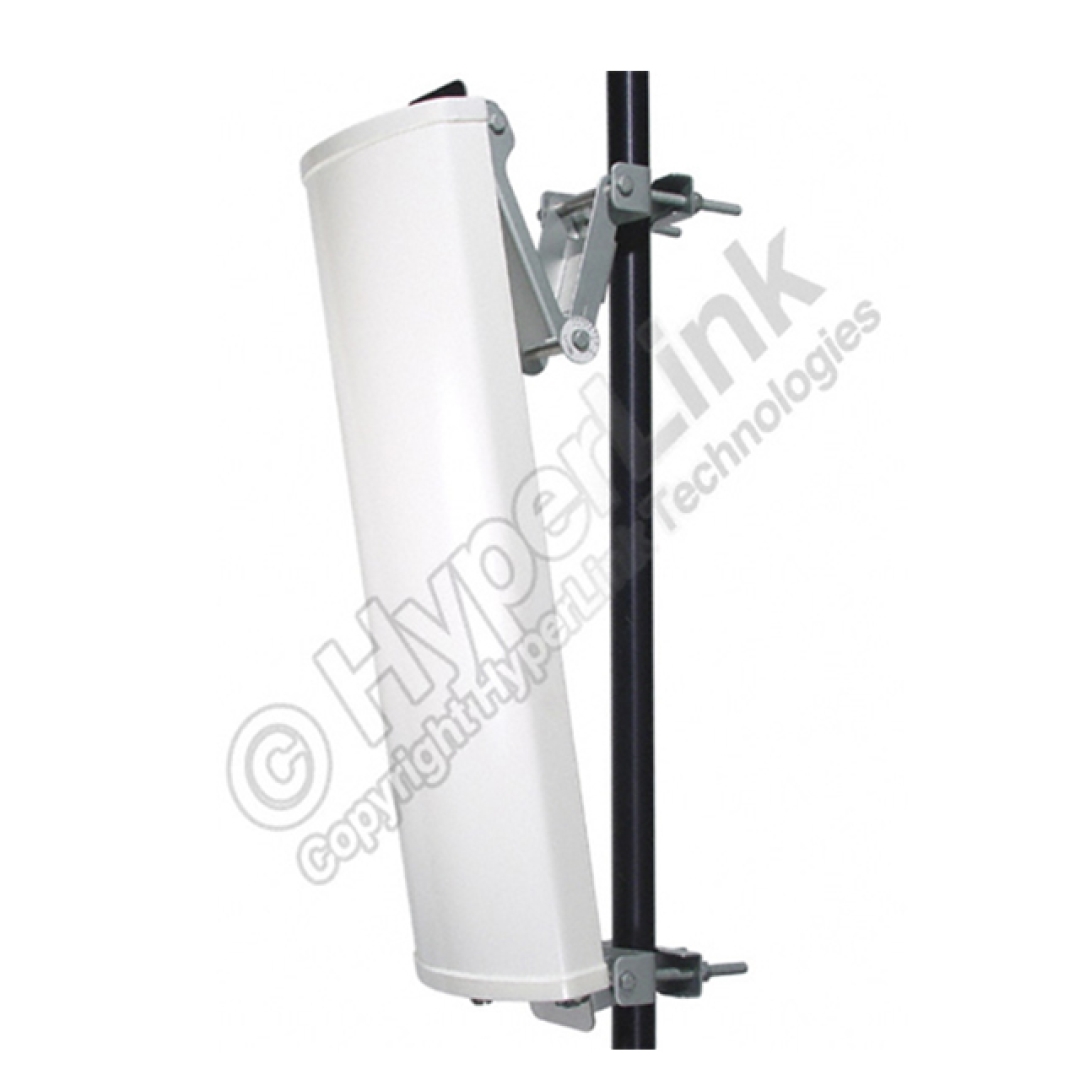

ELECTRICAL SPECIFICATIONS   FREQUENCY 3400 - 3700 MHZ GAIN 15 DBI POLARIZATION VERTICAL HORIZONTAL BEAM WIDTH 120° VERTICAL BEAM WIDTH 8° IMPEDANCE 50 OHM VSWR - 1.5:1 AVG. FRONT TO BACK RATIO - 21 DB MAX. INPUT POWER 50 WATTS LIGHTNING PROTECTION DC GROUND CONNECTOR INTEGRAL N-FEMALE   MECHANICAL SPECIFICATIONS   WEIGHT 5.0 LBS. (2.3 KG) DIMENSIONS 24.8 X 6.3 X 2.3 INCH (630 X 160 X 60 MM) RADOME MATERIAL UV-INHIBITED PVC MOUNTING 1.5 (40 MM) TO 2 (53 MM) DIA. MAST MAX. OPERATING TEMPERATURE -40° C TO TO 60° C (-40° F TO 140° F) RATED WIND >130 MPH (210 KM/H) ROHS COMPLIANT   YES     WIND LOADING DATA   WIND SPEED (MPH) LOADING 100 34 LB. 125 54 LB.     HG3515P-120 ANTENA SETORIAL HYPERLINK 15DBI 120º MAIORES DETALHES DE HG3515P-120 NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE HG3515P-120: HG3515P-120, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, ANTENA 15DBI, 15DBI, ANTENA 15 DBI, 15 DBI, ANTENA

Informações Adicionais
