Especificações Técnicas

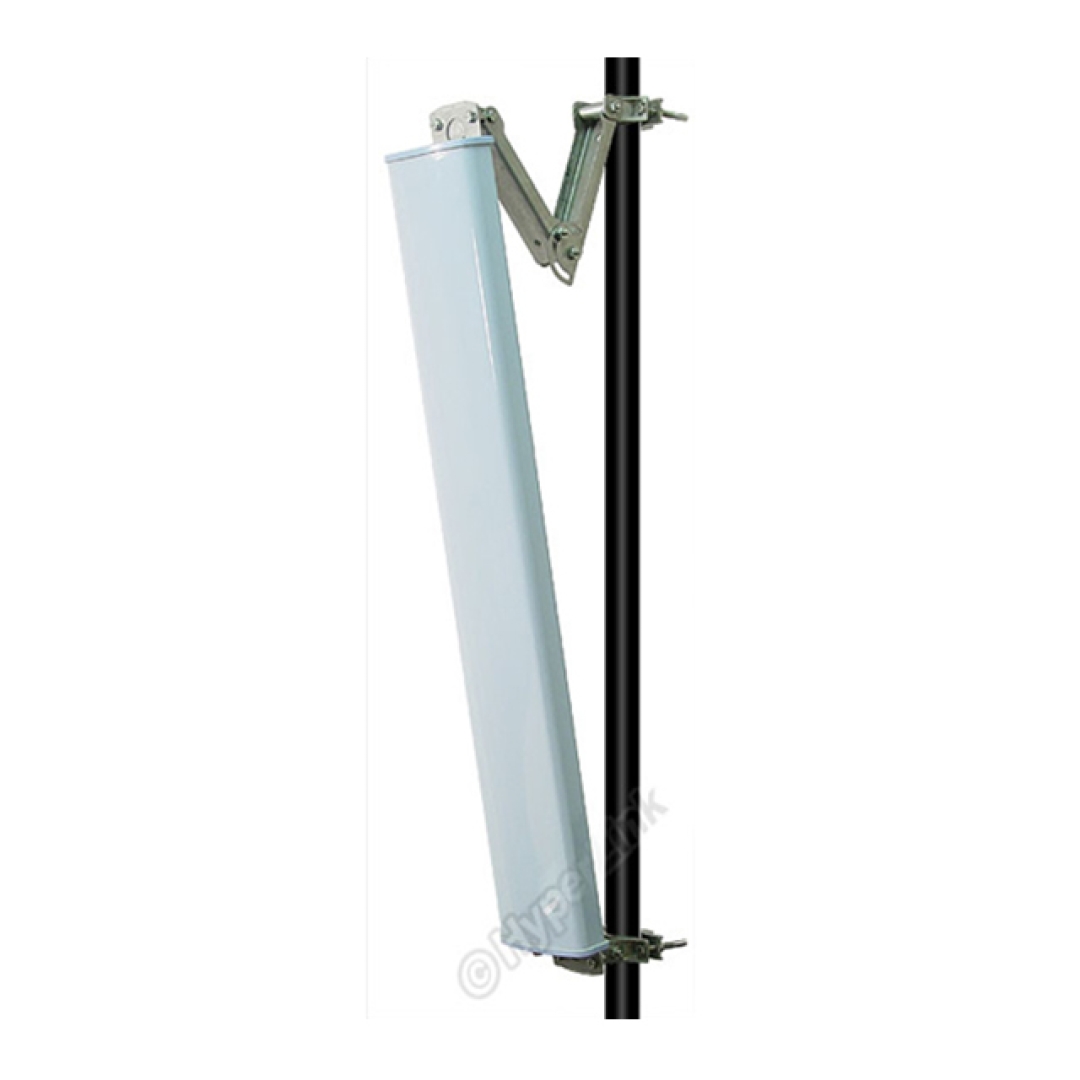

ELECTRICAL SPECIFICATIONS FREQUENCY 2400-2500 MHZ GAIN 17 DBI HORIZONTAL BEAM WIDTH 90 DEGREES VERTICAL BEAM WIDTH +/- 6.5° IMPEDANCE 50 OHM MAX. INPUT POWER 250 WATTS VSWR < 1.3:1 AVG. CONNECTOR N FEMALE LIGHTNING PROTECTION DC SHORT   MECHANICAL SPECIFICATIONS WEIGHT 10 LBS. ( 4.54 KG) DIMENSIONS 39 X 6 X 2.5 INCHES (99 X 15.3 X 6.4 CM) RADOME MATERIAL UV-INHIBITED POLYMER OPERATING TEMPERATURE -40° C TO TO 85° C (-40° F TO 185° F) MOUNTING 2 INCH (5 CM) O.D. PIPE MAX. POLARIZATION VERTICAL DOWN-TILT (MECH) 0 TO 20 DEGREES (ADJUSTABLE) ROHS COMPLIANT YES   WIND LOADING DATA WIND LOADING FRONT SURFACE SIDE SURFACE AREA 1.63 SQ. FT. (.15 SQ. METERS) 0.68 (.06 SQ. METERS) @ 100 MPH (161 KPH) 74 LBS. (33.5 KG) 35 LBS.(15.8 KG)   HG2417P-090 ANTENA SETORIAL HYPERLINK 2.4GHZ 17DBI MAIORES DETALHES DE HG2417P-090 NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE HG2417P-090: HG2417P-090, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, ANTENA 17DBI, 17DBI, ANTENA 17 DBI, 17 DBI, ANTENA
