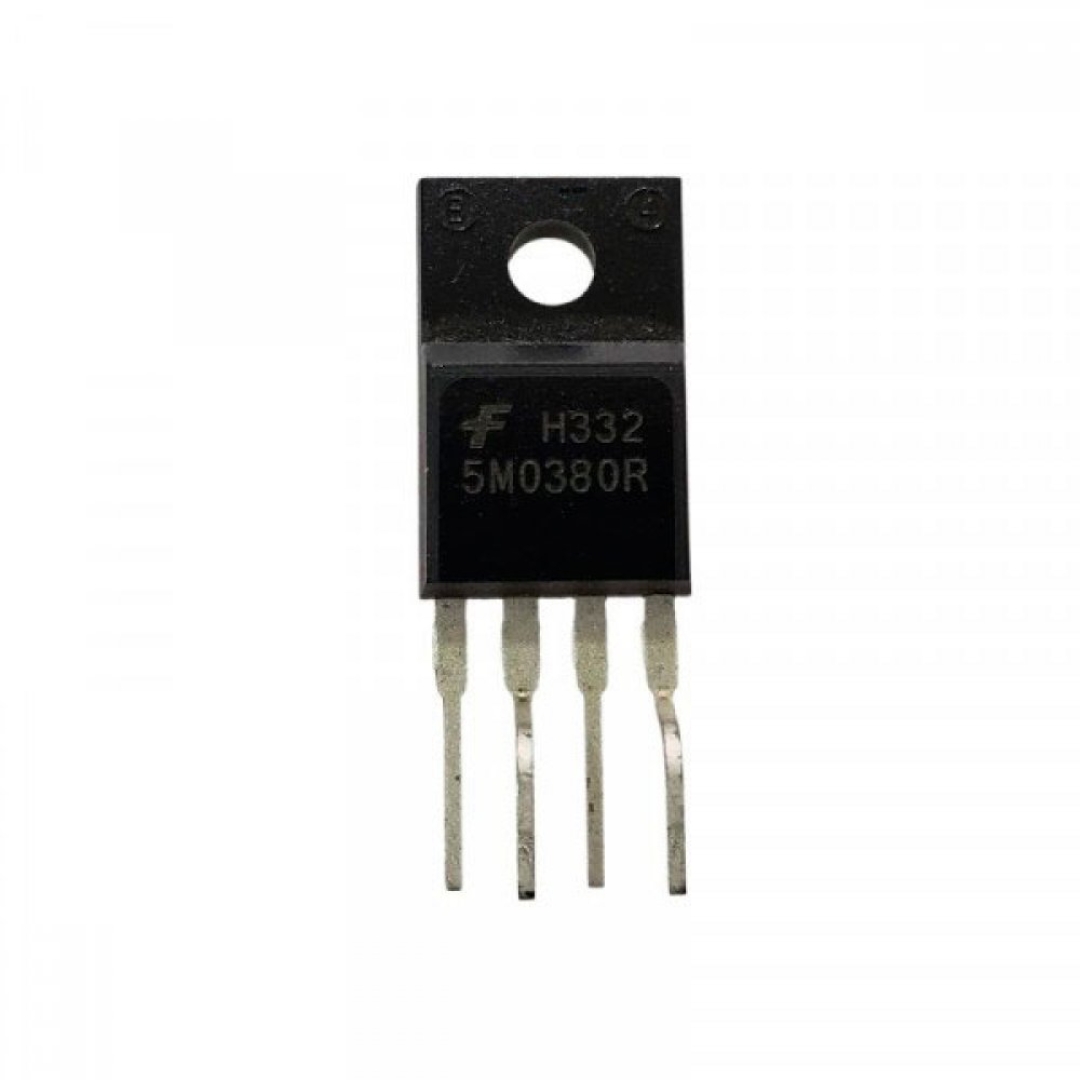

OUTROS PART NUMBERS PARA ESTE COMPONENTE: 5H0380 DESCRIPTION THE FAIRCHILD POWER SWITCH(FPS) PRODUCT FAMILY IS SPECIALLY DESIGNED FOR AN OFF-LINE SMPS WITH MINIMAL EXTERNAL COMPONENTS. THE FAIRCHILD POWER SWITCH(FPS) CONSISTS OF A HIGH VOLTAGE POWER SENSEFET AND A CURRENT MODE PWM IC. INCLUDED PWM CONTROLLER INTEGRATES THE FIXED FREQUENCY OSCILLATOR, THE UNDER VOLTAGE LOCK-OUT, THE LEADING EDGE BLANKING, THE OPTIMIZED GATE TURN-ON/TURN-OFF DRIVER, THE THERMAL SHUTDOWN PROTECTION, THE OVER VOLTAGE PROTECTION, AND THE TEMPERATURE COMPENSATED PRECISION CURRENT SOURCES FOR THE LOOP COMPENSATION AND THE FAULT PROTECTION CIRCUITRY. COMPARED TO A DISCRETE MOSFET AND A PWM CONTROLLER OR AN RCCSOLUTION, A FAIRCHILD POWER SWITCH(FPS) CAN REDUCE THE TOTAL COMPONENT COUNT, DESIGN SIZE AND WEIGHT AND AT THE SAME TIME INCREASE EFFICIENCY, PRODUCTIVITY, AND SYSTEM RELIABILITY. IT HAS A BASIC PLATFORM WELL SUITED FOR THE COST EFFECTIVE DESIGN IN EITHER A FLYBACK CONVERTER OR A FORWARD CONVERTER.     FEATURES - PRECISION FIXED OPERATING FREQUENCY (100/67/50KHZ) - LOW START-UP CURRENT(TYP. 100UA) - PULSE BY PULSE CURRENT LIMITING - OVER CURRENT PROTECTION - OVER VOLTAGE PROTECTION (MIN. 25V) - INTERNAL THERMAL SHUTDOWN FUNCTION - UNDER VOLTAGE LOCKOUT - INTERNAL HIGH VOLTAGE SENSE FET - AUTO-RESTART MODE   APPLICATIONS - SMPS FOR VCR, SVR, STB, DVD E DVCD - SMPS FOR PRINTER, FACSIMILE 5M0380R CI POWER SWITCH FPS TAGS DE 5M0380R: 5H0380, 5M0380R, 5H0380R, 5M0365R, KA5H0365R, KA5M0365R, KA5L0365R, KA5M0365RN, KA5L0365RN, KA5H0380R, KA5M0380R, KA5L0380R
