Especificações Técnicas

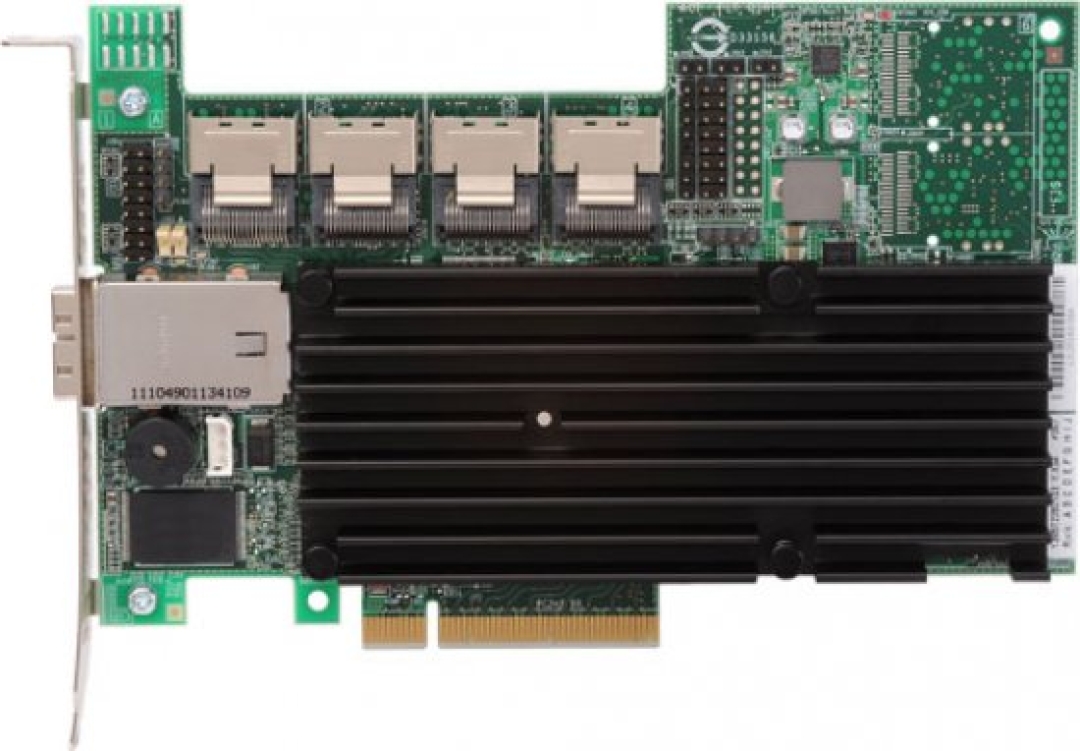

16-PORT INTERNAL / 4-PORT EXTERNAL PCI EXPRESS SATA AND SAS RAID CONTROLLER IN THE BOX: MEGARAID SAS 9280-16I4E, LP BRACKET, DRIVER & DOCUMENTATION CD (CABLES NOT INCLUDED) MEGARAID SAS 9280-16I4E FEATURES TWENTY 6GB/S SATA+SAS PORTS FOUR MINI-SAS INTERNAL CONNECTORS (SFF-8087) ONE MINI-SAS EXTERNAL CONNECTOR (SFF-8088) LSISAS2108 6GB/S RAID-ON-CHIP 800MHZ POWERPC® 512MB 800MHZ DDRII CACHE MEMORY OPTIONAL BATTERY BACKUP MODULE (REMOTE MOUNT ONLY) RAID LEVELS 0, 1, 5 AND 6 RAID SPANS 10, 50 AND 60 INTERNAL DRIVE STORAGE AND EXTERNAL JBOD EXPANSION PCI EXPRESS® 2.0 PROVIDES FASTER SIGNALING FOR HIGH-BANDWIDTH APPLICATIONS CONNECT UP TO 240 3GB/S AND 6GB/S SATA AND SAS DEVICES SUPPORT FOR LSI ADVANCED SOFTWARE OPTIONS INCLUDING FASTPATH, CACHECADE, SAFESTORE, AND RECOVERY SOLUTION PROVIDED SIXTEEN-PORT INTERNAL / FOUR-PORT EXTERNAL SATA+SAS SOLUTION FOR INTERNAL DRIVE STORAGE AND EXTERNAL JBOD EXPANSION USING UP TO 240 SAS AND/OR SATA DEVICES PHYSICAL DIMENSIONS HALF-LENGTH, FULL HEIGHT (6.6” X 4.376”) INTERNAL CONNECTORS FOUR MINI-SAS SFF8087 4I INTERNAL CONNECTORS EXTERNAL CONNECTORS ONE MINI-SAS SFF8088 4X EXTERNAL CONNECTOR DEVICE SUPPORT UP TO 240 SAS AND/OR SATA DEVICES HOST BUS TYPE X8 LANE PCI EXPRESS 2.0 COMPLIANT DATA TRANSFER RATES UP TO 6GB/S PER PORT I/O PROCESSOR/SAS CONTROLLER LSISAS2108 RAID ON CHIP (ROC) AND LSISAS2X36 EXPANDER CACHE MEMORY 512MB 800MHZ DDR II SDRAM KEY RAID DATA PROTECTION FEATURES RAID LEVELS 0, 1, 5, AND 6 RAID SPANS 10, 50 AND 60 ONLINE CAPACITY EXPANSION (OCE) ONLINE RAID LEVEL MIGRATION (RLM) AUTO RESUME AFTER LOSS OF SYSTEM POWER DURING ARRAY REBUILD OR RECONSTRUCTION (RLM) SINGLE CONTROLLER MULTIPATHING LOAD BALANCING CONFIGURABLE STRIPE SIZE UP TO 1MB FAST INITIALIZATION FOR QUICK ARRAY SETUP CHECK CONSISTENCY FOR BACKGROUND DATA INTEGRITY SUPPORT FOR ADVANCED SOFTWARE OPTIONS INCLUDING FASTPATH, CACHECADE, SAFESTORE, AND RECOVERY SSD SUPPORT WITH SSD GUARD™ PATROL READ FOR MEDIA SCANNING AND REPAIRING 64 LOGICAL DRIVE SUPPORT UP TO 64TB LUN SUPPORT DDF COMPLIANT CONFIGURATION ON DISK (COD) S.M.A.R.T SUPPORT GLOBAL AND DEDICATED HOT SPARE WITH REVERTIBLE HOT SPARE SUPPORT - AUTOMATIC REBUILD - ENCLOSURE AFFINITY - EMERGENCY SATA HOT SPARE FOR SAS ARRAYS ENCLOSURE MANAGEMENT - SES (INBAND) - SGPIO (SIDEBAND) OPERATING TEMPERATURE MAXIMUM AMBIENT: 60°C (45°C W/IBBU) OPERATING VOLTAGE +3.3V WARRANTY 3 YEARS, FREE ADVANCED TECHNICAL SUPPORT, ADVANCED REPLACEMENT OPTION REGULATORY CERTIFICATIONS EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC CLASS A, CLASS B; UL1950; UL; CSA C22.2; VCCI; RRL FOR MIC; BSMI; C-TICK RAID MANAGEMENT MEGARAID MANAGEMENT SUITE -MEGARAID STORAGE MANAGER -MEGACLI (COMMAND-LINE INTERFACE) -WEBBIOS OS SUPPORT EXTENSIVE SUPPORT INCLUDES MICROSOFT® WINDOWS® VISTA/2008/SERVER 2003/2000/XP, LINUX®, SOLARIS™ (X86), NETWARE®, FREEBSD®, VMWARE® AND MORE. VISIT THE LSI DOWNLOAD CENTER FOR THE MOST COMPLETE LIST OF SUPPORTED OPERATING SYSTEMS: LSI.COM/CHANNEL/SUPPORT  LSI00210 CONTROLADORA LSI SAS/SATA3 16 CANAIS TAGS DE LSI00210: SFF8088, SFF8087, SFF-8088, 16 CANAIS, 16 HDS, 16 CHANNEL, CONTROLADORA PARA 16 HDS, SFF-8087, LSISAS2108, 9280-16I4E, LSI00210, 16 CANAIS, CONTROLADORA RAID, CONTROLADORA SAS, CONTROLADORA SATA, CONTROLADORA DE BACKUP, PLACA CONTROLADORA, LSI LOGIC
