Especificações Técnicas

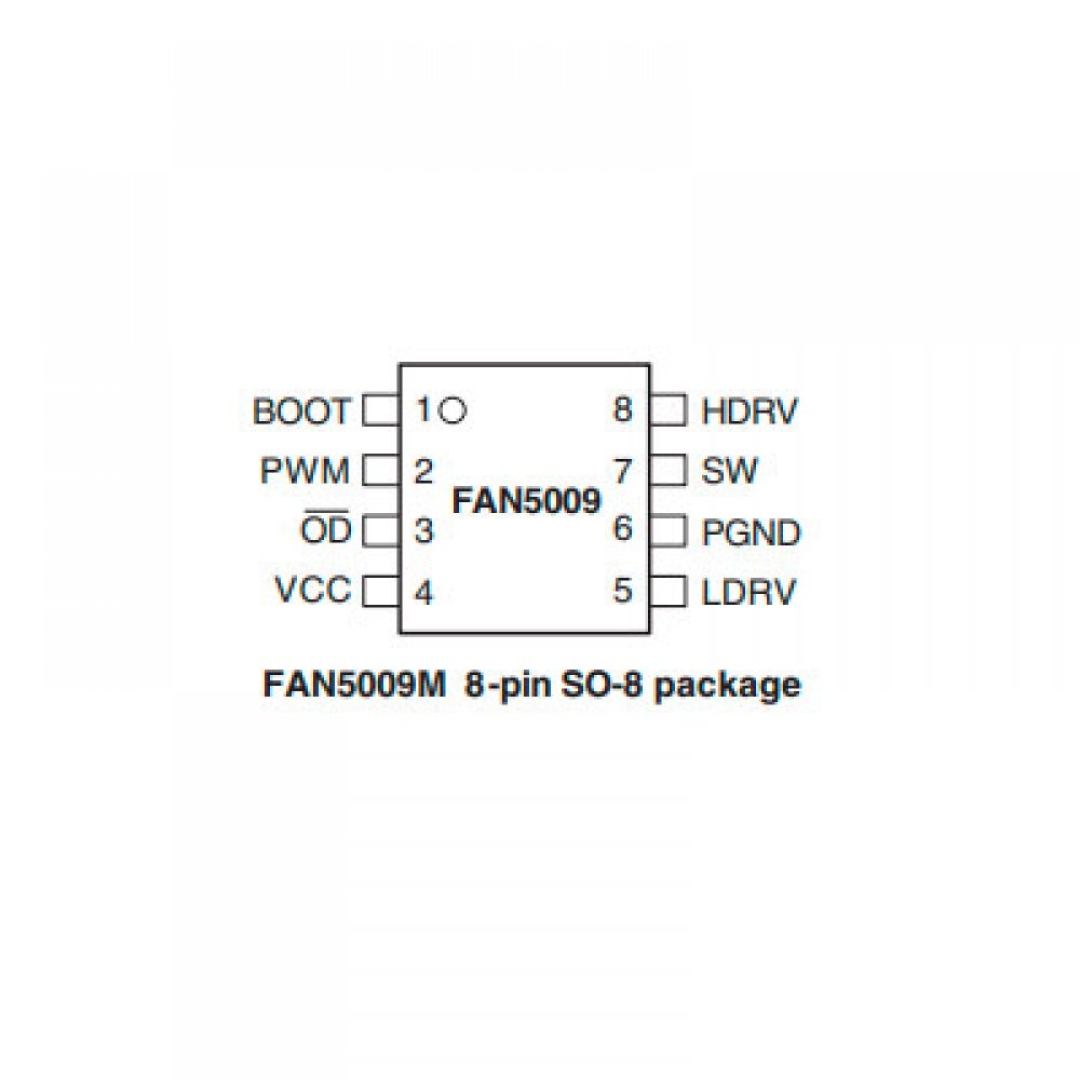

FEATURES - DRIVES N-CHANNEL HIGH-SIDE AND LOW-SIDE MOSFETS IN A SYNCHRONOUS BUCK CONFIGURATION - 12V HIGH-SIDE AND 12V LOW-SIDE DRIVE - INTERNAL ADAPTIVE SHOOT-THROUGH PROTECTION - INTEGRATED BOOTSTRAP DIODE FOR HIGH-SIDE DRIVE - FAST RISE AND FALL TIMES - SWITCHING FREQUENCY UP TO 500KHZ - OD INPUT FOR OUTPUT DISABLE - ALLOWS FOR SYNCHRONIZATION WITH PWM CONTROLLER - SOIC-8 PACKAGE - AVAILABLE IN LOW THERMAL RESISTANCE MLP PACKAGE APPLICATIONS - MULTI-PHASE VRM/VRD REGULATORS FOR MICROPROCESSOR POWER - HIGH CURRENT/HIGH FREQUENCY DC/DC CONVERTERS - HIGH POWER MODULAR SUPPLIES     MANUFACTURER: FAIRCHILD PRODUCT CATEGORY: GATE DRIVERS     TYPE: HIGH-SIDE, LOW-SIDE MOUNTING STYLE: SMD/SMT NUMBER OF DRIVERS: 2 DRIVER NUMBER OF OUTPUTS: 2 OUTPUT SUPPLY VOLTAGE - MIN: 10 V MINIMUM OPERATING TEMPERATURE: 0 C MAXIMUM OPERATING TEMPERATURE: 85 C PACKAGING: TUBE BRAND: FAIRCHILD OPERATING SUPPLY CURRENT: 8 MA OPERATING SUPPLY VOLTAGE: 12 V PD - POWER DISSIPATION: 715 MW PRODUCT TYPE: GATE DRIVERS FAN5009M DUAL BOOTSTRAPPED 12V MOSFET DRIVER MAIORES DETALHES DE FAN5009M NO SITE DO FABRICANTE: HTTPS://WWW.ALLABOUTCIRCUITS.COM/ELECTRONIC-COMPONENTS/DATASHEET/FAN5009M--ONSEM TAGS DE FAN5009M: FAN5009M, CI 5009M, IC5009M
