Especificações Técnicas

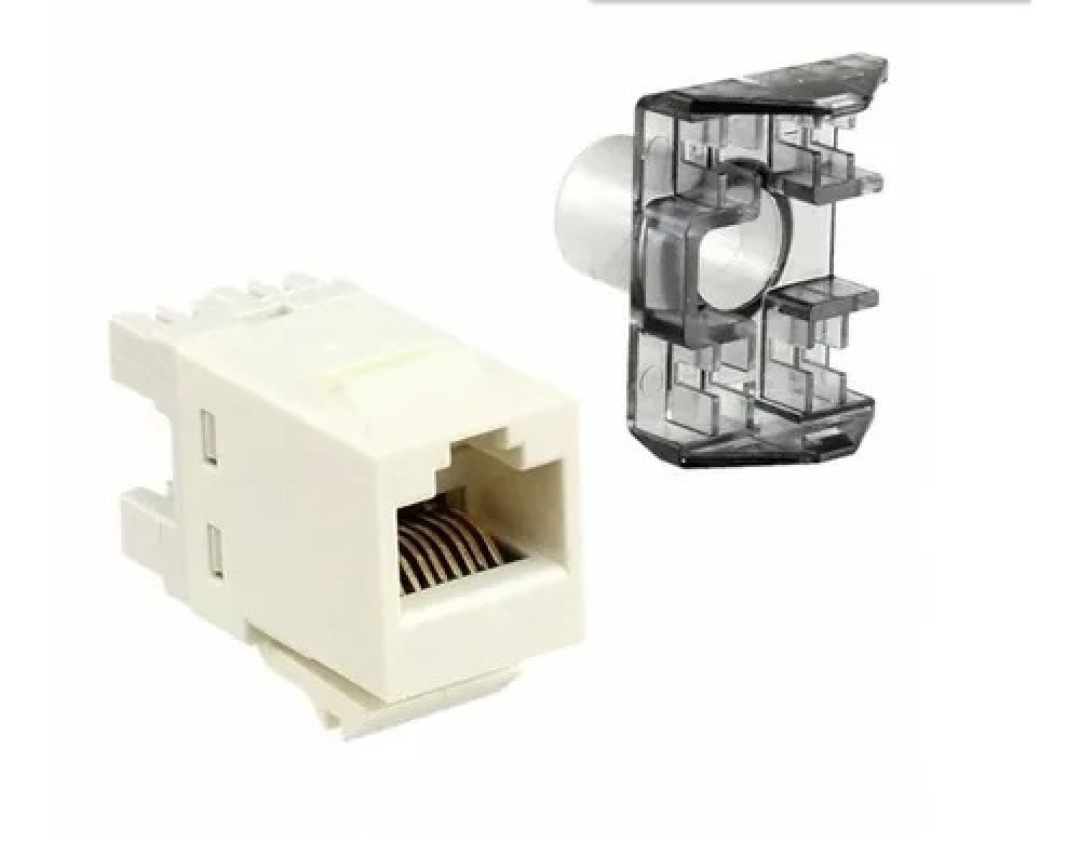

KEYSTONE RJ45 CAT6 SL BRANCO AMP SPECIFICATIONS: BODY FEATURES 110 BLOCK MATERIAL POLYCARBONATE INVERTED JACK FACE YES CONFIGURATION FEATURES KEYED NO NUMBER OF POSITIONS 8 WIRING PATTERN UNIVERSAL CONTACT FEATURES CONTACT BASE MATERIAL BERYLLIUM COPPER CONTACT MATING AREA PLATING MATERIAL GOLD CONTACT MATING AREA PLATING THICKNESS 50.00 µIN | 1.27 µM DIMENSIONS: CONDUCTOR OUTSIDE DIAMETER 0.057 IN | 1.45 MM SOLID WIRE RANGE .51 MM² | .65 MM² STRANDED WIRE RANGE .14 MM² | .2 MM² WIRE RANGE 22 AWG | 24 AWG | 26 AWG HOUSING FEATURES: HOUSING COLOR WHITE HOUSING MATERIAL POLYCARBONATE INDUSTRY STANDARDS: UL FLAMMABILITY RATING UL 94V-0 MECHANICAL ATTACHMENT: MOUNTING TYPE SL SERIES FACEPLATE OTHER: COMMENT WITH STRAIN RELIEF. PACKAGING FEATURES: PACKAGING METHOD POLY BAG PACKAGING QUANTITY 25 PRODUCT AVAILABILITY: REGION ASIA | LATIN AMERICA | NORTH AMERICA PRODUCT TYPE FEATURES: PRODUCT TYPE CONNECTOR - MODULAR PERFORMANCE CATEGORY CATEGORY 6 SHIELDED NO SYSTEM SL 110 SERIES APPLIES TO PANEL CABLE TYPE UNSHIELDED TWISTED PAIR CONNECTOR STYLE JACK CONNECTOR TYPE CONNECTOR ASSEMBLY DUST COVER WITHOUT JACK TYPE RJ45 1375055-3 COMMSCOPE JACK RJ-45 FEMEA CAT.6 SL BR 568-A/B MAIORES DETALHES DE 1375055-3 NO SITE DO FABRICANTE: HTTPS://PT.COMMSCOPE.COM/SEARCH/?SEARCHQUERY=1375055-3 TAGS DE 1375055-3: 1375055-3, PATCH PANEL, 1933658-1, CONECTOR FEMEA, KEYSTONE AMP, KEYSTONE FEMEA, KEYSTONE CAT6, CONECTOR RJ45 CAT6, CONECTOR CAT6
