Especificações Técnicas

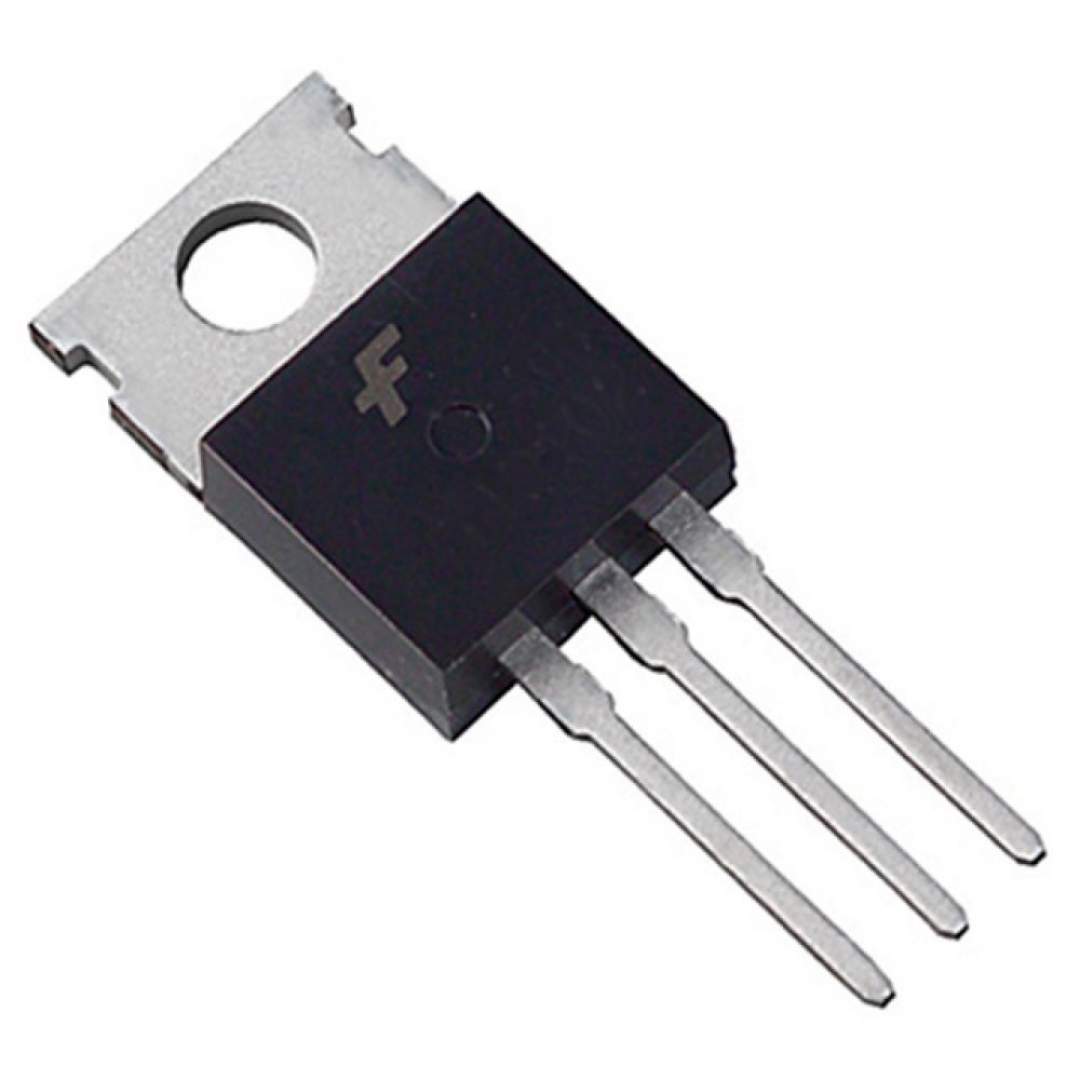

OUTROS NUMEROS DE PEÇA PARA ESTE COMPONENTE: FQPF8N60C MANUFACTURER: FAIRCHILD PRODUCT CATEGORY: MOSFET ROHS:   TECHNOLOGY: SI MOUNTING STYLE: THROUGH HOLE PACKAGE / CASE: TO-220-3 TRANSISTOR POLARITY: N-CHANNEL NUMBER OF CHANNELS: 1 CHANNEL VDS - DRAIN-SOURCE BREAKDOWN VOLTAGE: 600 V ID - CONTINUOUS DRAIN CURRENT: 7.5 A RDS ON - DRAIN-SOURCE RESISTANCE: 1.2 OHMS VGS - GATE-SOURCE VOLTAGE: - 30 V, 30 V VGS TH - GATE-SOURCE THRESHOLD VOLTAGE: 4 V QG - GATE CHARGE: 28 NC MINIMUM OPERATING TEMPERATURE: - 55 C MAXIMUM OPERATING TEMPERATURE: 150 C PD - POWER DISSIPATION: 147 W CHANNEL MODE: ENHANCEMENT PACKAGING: TUBE BRAND: FAIRCHILD CONFIGURATION: SINGLE FALL TIME: 64.5 NS FORWARD TRANSCONDUCTANCE - MIN: 8.7 S HEIGHT: 16.3 MM LENGTH: 10.67 MM PRODUCT TYPE: MOSFET RISE TIME: 60.5 NS SERIES: FQP8N60C FACTORY PACK QUANTITY: 1000 SUBCATEGORY: MOSFETS TRANSISTOR TYPE: 1 N-CHANNEL TYPE: MOSFET TYPICAL TURN-OFF DELAY TIME: 81 NS TYPICAL TURN-ON DELAY TIME: 16.5 NS WIDTH: 4.7 MM PART # ALIASES: FQP8N60C_NL UNIT WEIGHT: 2 G FQP8N60C MOSFET 600V 7.5A QFET N-CHANNEL RDSON 1.2R TO-220 MAIORES DETALHES DE FQP8N60C NO SITE DO FABRICANTE: HTTPS://PDF1.ALLDATASHEET.COM/DATASHEET-PDF/VIEW/88856/FAIRCHILD/FQP8N60C.HTML TAGS DE FQP8N60C: FQP8N60C, FQP8N60, P8N60C, Q8N60, 8N60, 8N60C, TO-220, T0-220, MOSFET 7A 600V, MOSFET CANAL N, MOSFET DE POTENCIA N-CH 600V, AP50WN1K5, 50HL1K5, FQPF 8N60C, FQPF8N60C, AP60AN1K1IN, 60AN1K1, AP60AN1, TK1K2A60F, K1K2A60F, K750A60F, K750A60F, SVF10N65CF
