Especificações Técnicas

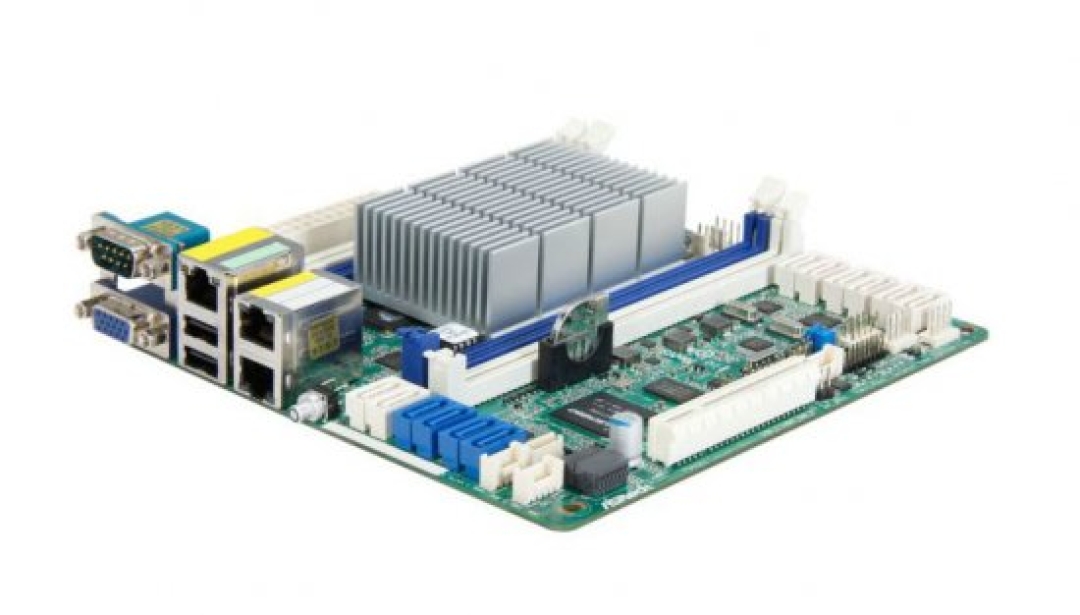

 INTEL AVOTON C2750 OCTA-CORE PROCESSOR   DDR3 1600/1333 DUAL-CHANNEL MAX. 64GB   2 SATA3 6.0GBPS, 4 SATA2 3.0GBPS BY C2750   4 X SATA3 6.0 GB/S BY MARVELL SE9230, 2 X SATA3 6.0 GB/S BY MARVELL SE9172   DUAL INTEL I210 GIGABIT LAN PORTS (WITH TEAMING )   3 X USB 2.0 PORTS (2 REAR PORTS 1 VIA HEADERS OR 1 REAR PORTS 2 VIA HEADERS CONTROLLED BY USB_SEL1 AND USB_SEL2 JUMPER)   1 X PCI-E X8 SLOT SPECIFICATIONS  MB PHYSICAL STATUS FORM FACTOR MINI ITX DIMENSIONS 6.7 X 6.7 (17.02 CM X17.02 CM)    PROCESSOR SYSTEM CPU INTEL® OCTA CORE AVOTON C2750 PROCESSOR SOCKET FCBGA1283 SOC    SYSTEM MEMORY CAPACITY 4 X 240-PIN DDR3 DIMM SLOTS SUPPORT UP TO 64GB DDR3 ECC AND UDIMM TYPE DUAL CHANNEL DDR3 MEMORY TECHNOLOGY SUPPORTS DDR3 1600/1333 ECC AND UDIMM VOLTAGE 1.5V, 1.35V    EXPANSION SLOT PCIE 2.0 X 8 1 SLOT (X8 MODE)    STORAGE SATA CONTROLLER INTEL® C2750 : 2 X SATA3 6.0 GB/S, 4 X SATA2 3.0 GB/S ADDITIONAL STORAGE CONTROLLER MARVELL SE9172: 2 X SATA3 6.0 GB/S MARVELL SE9230: 4 X SATA3 6.0 GB/S    ETHERNET INTERFACE GIGABIT LAN 10/100/1000 MB/S LAN CONTROLLER 2 X INTEL® I210 SUPPORTS WAKE-ON-LAN SUPPORTS ENERGY EFFICIENT ETHERNET 802.3AZ SUPPORTS DUAL LAN WITH TEAMING SUPPORTS PXE    MANAGEMENT BMC CONTROLLER ASPEED AST2300 : IPMI (INTELLIGENT PLATFORM MANAGEMENT INTERFACE) 2.0 WITH IKVM SUPPORT IPMI DEDICATED LAN 1 X REALTEK RTL8211E FOR DEDICATED MANAGEMENT LAN FEATURES WATCH DOG NMI    GRAPHICS CONTROLLER ASPEED AST2300 VRAM DDR3 16MB OUTPUT SUPPORTS D-SUB WITH MAX. RESOLUTION UP TO 1920X1200 @ 60HZ    REAR PANEL I/O VGA PORT D-SUB X 1 USB 2.0 PORT 2 LAN PORT 2 X RJ45 GIGABIT ETHERNET LAN PORTS 1 X RJ45 DEDICATED IPMI LAN PORT LAN PORTS WITH LED (ACT/LINK LED AND SPEED LED) SERIAL PORT 1 (COM1) UID BUTTON/UID LED 1    INTERNAL CONNECTOR AUXILIARY PANEL HEADER 1 (INCLUDE CHASSIS INTRUSION, LOCATION BUTTON E LED, FRONT LAN LED) IPMB HEADER 1 FAN HEADER 6 X 4-PIN ATX POWER 1 (24-PIN) USB 2.0 HEADER 1 (SUPPORT 1 VIA HEADERS OR 2 VIA HEADERS CONTROLLED BY USB_SEL1 AND USB_SEL2 JUMPER) FRONT PANEL 1    SYSTEM BIOS BIOS TYPE 64MB AMI UEFI LEGAL BIOS BIOS FEATURES PLUG AND PLAY (PNP) ACPI 1.1 COMPLIANCE WAKE UP EVENTS SMBIOS 2.3.1 SUPPORT DRAM VOLTAGE MULTI-ADJUSTMENT ASROCK INSTANT FLASH    HARDWARE MONITOR TEMPERATURE CPU TEMPERATURE SENSING MOTHERBOARD TEMPERATURE SENSING FAN CPU/REAR/FRONT FAN TACHOMETER CPU QUIET FAN (ALLOW CPU FAN SPEED AUTO-ADJUST BY CPU TEMPERATURE) CPU/REAR/FRONT FAN MULTI-SPEED CONTROL VOLTAGE VOLTAGE MONITORING: 12V, 5V, 3.3V, CPU VCORE, DRAM, 1.1V, 1.0V, BAT, 3VSB, 5VSB    SUPPORT OS OS MICROSOFT WINDOWS SERVER 2008 R2 (X64) SERVER 2012 (X64) LINUX REDHAT ENTERPRISE LINUX SERVER 5.5/6.4 (X32 AND X64) CENTOS 5.5 / 6.4 (X32 AND X64) SUSE ENTERPRISE LINUX SERVER 11 SP1 (X32 AND X64) FREEBSD 9.1 (X32/X64) FEDORA CORE 18 (X64) UBUNTU 12.04/12.10 (X64) VIRTUAL VMWARE ESXI 5.1 (MARVELL SE9230 AND MARVELL SE9172 HAS NO DRIVER CAN SUPPORT VMWARE)  ENVIRONMENT TEMPERATURE OPERATION TEMPERATURE: 10°C ~ 35°C / NON OPERATION TEMPERATURE: -40°C ~ 70°C * INSTALL A CPU FAN WHEN THE AIRFLOW THROUGH THE HEATSINK IS BELOW 2CFM. C2750D4I PLACA-MÃE ASROCK MINI ITX SERVER TAGS DE C2750D4I: AVOTON C2750, FCBGA1283, MOTHERBOARD, PLACA MAE, PLACA-MAE, MINI-ITX, AS ROCK
