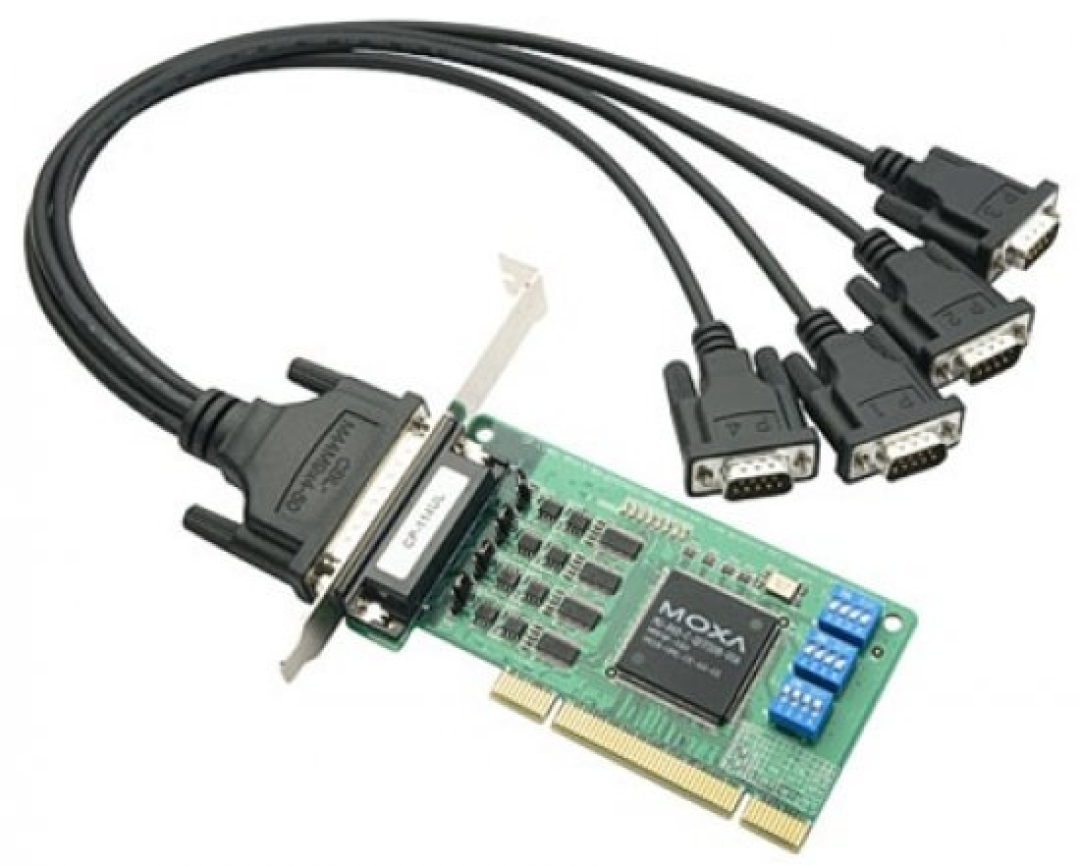

MOXA CP-114UL/UL-I SERIES OF MULTIPORT SERIAL BOARDS ARE DESIGNED TO BE USED BY INDUSTRIAL AUTOMATION SYSTEM INTEGRATORS FOR LONG DISTANCE, MULTI-POINT, PC-BASED DATA ACQUISITION APPLICATIONS. ON-CHIP AUTOMATIC DATA DIRECTION CONTROL FOR PRECISION RS-485 COMMUNICATION REQUIRES PRECISE TIMING CONTROL TO ENABLE AND DISABLE THE LINE DRIVER. THE MOXA TURBO SERIAL ENGINE- CHIP THAT POWERS THE CP-114UL/UL-I BOARDS COME WITH ON-CHIP ADDC®, WHICH MAKES RS-485 AS EASY TO USE AS RS-232. IN RS-485 MODE, THE SERIAL PORT CAN CONNECT UP TO 31 DAISY-CHAINED RS-485 DEVICES WITHIN A RANGE OF 1.2 KM. FOR LONG DISTANCE RS-485 COMMUNICATION, 2 KV OPTICAL ISOLATION PROTECTIONS ARE AVAILABLE TO PREVENT EQUIPMENT DAMAGE.   DRIVES PROVIDED FOR WINDOWS, LINUX, AND UNIX MOXA CONTINUES TO SUPPORT A WIDE VARIETY OF OPERATING SYSTEMS, AND THE CP-114UL/UL-I BOARDS ARE NO EXCEPTION. RELIABLE WINDOWS COM AND LINUX/UNIX TTY DRIVERS ARE PROVIDED FOR ALL MOXA BOARDS, AND OTHER OPERATING SYSTEMS, SUCH AS WEPOS, ARE ALSO SUPPORTED FOR EMBEDDED INTEGRATION.   FEATURES OVER 700 KBPS DATA THROUGHPUT FOR TOP PERFORMANCE 128-BYTE FIFO AND ON-CHIP H/W, S/W FLOW CONTROL UNIVERSAL PCI COMPATIBLE WITH 3.3/5 V PCI AND PCI-X SERIAL COMMUNICATION SPEED UP TO 921.6 KBPS DRIVERS PROVIDED FOR WINDOWS (2000, XP/2003/VISTA/2008 X86/X64, 9X/ME/NT), LINUX 2.4, LINUX 2.6 (X86/X64) EASY MAINTENANCE WITH ON-BOARD LED DISPLAY ON-BOARD 15 KV ESD AND 2 KV OPTICAL ISOLATION PROTECTION WIDE TEMPERATURE MODEL AVAILABLE FOR -40 TO 85°C ENVIRONMENT HARDWARE COMM. CONTROLLER MU860 (16C550C COMPATIBLE) BUS 32-BIT UNIVERSAL PCI CONNECTOR DB44 FEMALE - SERIAL INTERFACE NUMBER OF PORTS 4 SERIAL STANDARDS RS-232/422/485 MAX. NO. OF BOARDS PER PC 4 ELECTRICAL ISOLATION 2 KV (CP-114UL-I ONLY) - PERFORMANCE BAUDRATE 50 BPS TO 921.6 KBPS - SERIAL COMMUNICATION PARAMETERS DATA BITS 5, 6, 7, 8 STOP BITS 1, 1.5, 2 PARITY NONE, EVEN, ODD, SPACE, MARK FLOW CONTROL RTS/CTS, XON/XOFF - SERIAL SIGNALS RS-232 TXD, RXD, RTS, CTS, DTR, DSR, DCD, GND RS-422 TXD (B), TXD-(A), RXD (B), RXD-(A), GND RS-485-4W TXD (B), TXD-(A), RXD (B), RXD-(A), GND RS-485-2W DATA (B), DATA-(A), GND - PHYSICAL CHARACTERISTICS DIMENSIONS CP-114UL: 64.4 X 120 MM (2.53 X 4.72 IN) CP-114UL-I: 64.4 X 130 MM (2.53 X 5.12 IN) - DRIVER SUPPORT WINDOWS WINDOWS 95/98/ME/NT/2000, WINDOWS XP/2003/VISTA/2008/7/8/8.1/10 (X86/X64), WINDOWS 2008 R2/2012/2012 R2 (X64), DOS, WINDOWS EMBEDDED CE 5.0/6.0, WINDOWS XP EMBEDDED LINUX LINUX 2.4.X, 2.6.X, 3.X UNIX-LIKE SYSTEMS QNX 6, SCO OPENSERVER, UNIXWARE 7, SOLARIS 10, FREEBSD NOTE: PLEASE REFER TO MOXA-S WEBSITE FOR THE LATEST DRIVER SUPPORT INFORMATION. - ENVIRONMENTAL LIMITS OPERATING TEMPERATURE STANDARD MODELS: 0 TO 55°C (32 TO 131°F) WIDE TEMP. MODELS: -40 TO 85°C (-40 TO 185°F) STORAGE TEMPERATURE -40 TO 85°C (-40 TO 185°F) AMBIENT RELATIVE HUMIDITY 5 TO 95% (NON-CONDENSING) - STANDARDS AND CERTIFICATIONS EMC EN 55022/24 EMI CISPR 22, FCC PART 15B CLASS B EMS CP-114UL: IEC 61000-4-2 ESD: CONTACT: 4 KV; AIR: 8 KV IEC 61000-4-3 RS: 80 MHZ TO 1 GHZ: 3 V/M CP-114UL-I: IEC 61000-4-2 ESD: CONTACT: 4 KV; AIR: 8 KV IEC 61000-4-3 RS: 80 MHZ TO 1 GHZ: 3 V/M IEC 61000-4-4 EFT: POWER: 1 KV; SIGNAL: 0.5 KV IEC 61000-4-5 SURGE: POWER: 2 KV IEC 61000-4-6 CS: 150 KHZ TO 80 MHZ: 3 V/M; SIGNAL: 3 V/M IEC 61000-4-8 PFMF IEC 61000-4-11 - MTBF (MEAN TIME BETWEEN FAILURES) TIME 114,223 HRS STANDARD TELCORDIA (BELLCORE) SR-332 - POWER REQUIREMENTS INPUT CURRENT CP-114UL: 320 MA @ 5 VDC CP-114UL-I: 465 MA @ 5 VDC CP-114UL-I-DB9M PLACA MOXA SERIAL 4 PORTAS UPCI MAIORES DETALHES DE CP-114UL-I-DB9M NO SITE DO FABRICANTE: HTTPS://WWW.MOXA.COM/EN/PRODUCTS/INDUSTRIAL-EDGE-CONNECTIVITY/MULTIPORT-SERIAL-B TAGS DE CP-114UL-I-DB9M: CP-114UL, CP114UL, CP 114UL, CP-114UL-I-DB9M
