Especificações Técnicas

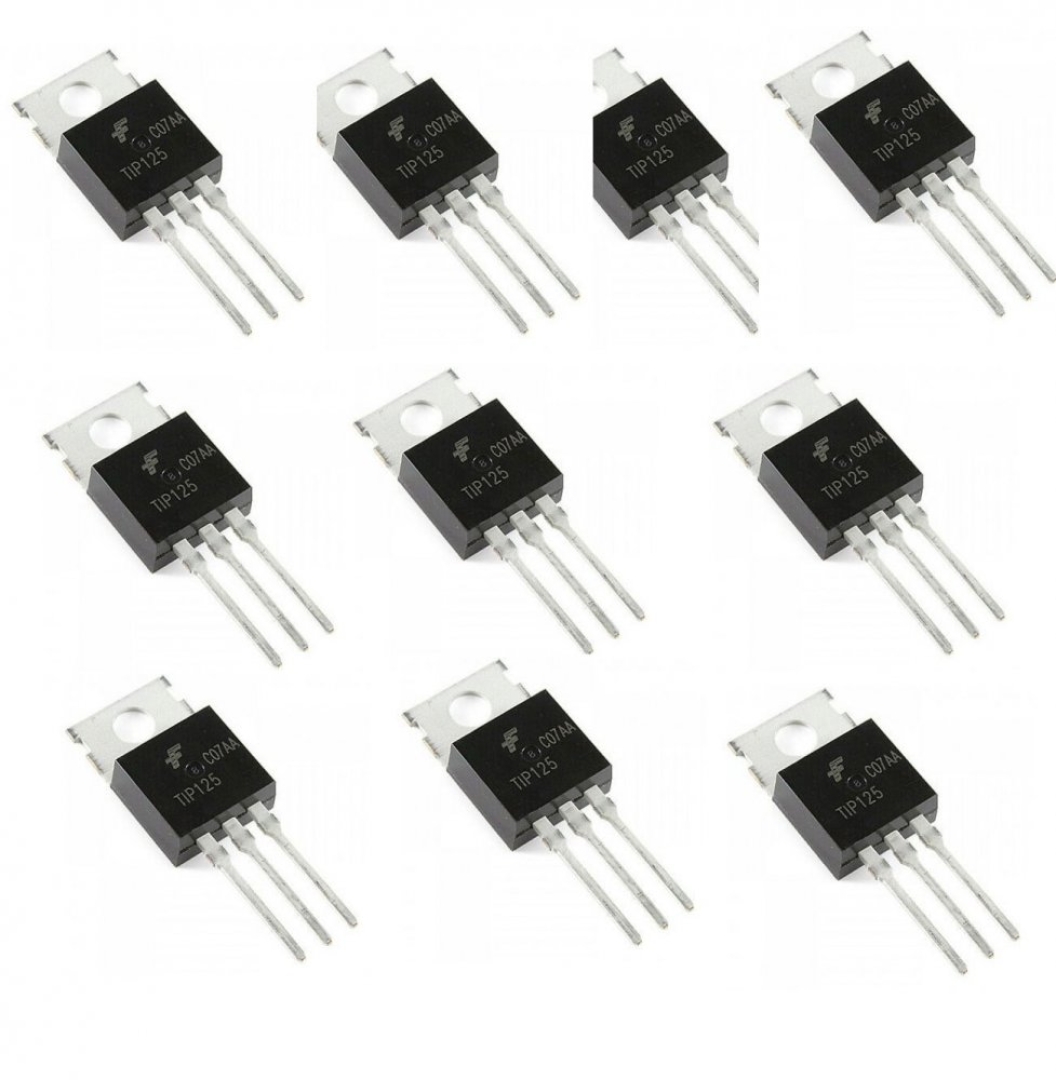

PRODUCT CATEGORY: DARLINGTON TRANSISTORS ROHS:   CONFIGURATION: SINGLE TRANSISTOR POLARITY: PNP COLLECTOR- EMITTER VOLTAGE VCEO MAX: 60 V EMITTER- BASE VOLTAGE VEBO: 5 V COLLECTOR- BASE VOLTAGE VCBO: 60 V MAXIMUM DC COLLECTOR CURRENT: 5 A MAXIMUM COLLECTOR CUT-OFF CURRENT: 1000 UA MOUNTING STYLE: THROUGH HOLE PACKAGE / CASE: TO-220-3 MINIMUM OPERATING TEMPERATURE: - 65 C MAXIMUM OPERATING TEMPERATURE: 150 C SERIES: TIP125 TIP125 PNP EPITAXIAL DARLINGTON TRANSISTOR 60V 5A MAIORES DETALHES DE TIP125 NO SITE DO FABRICANTE: HTTPS://DATASHEET.OCTOPART.COM/TIP125-FAIRCHILD-DATASHEET-7602398.PDF TAGS DE TIP125: TIP125, TIP126, TIP127
