Especificações Técnicas

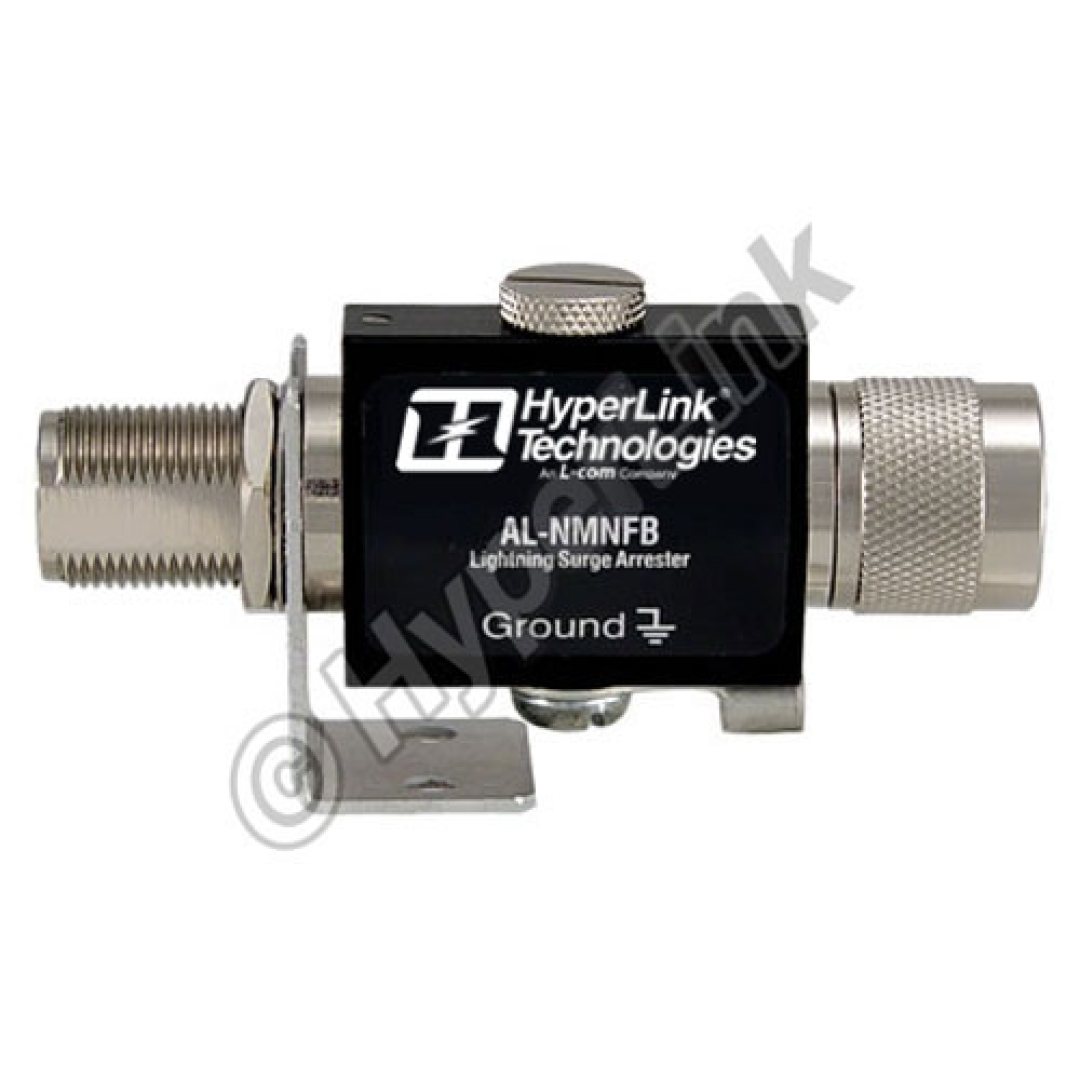

CENTELHADOR A GÁS DE 90V COM UMA BANDA LARGA DE  OPERAÇAO CONFIÁVEL PARA ATÉ 3GHZ. ESTE PROTETOR DE ONDA ROBUSTO CARACTERIZA UM ELEMENTO DE TUBO DE GÁS SUBSTITUIVEL, E PROVÊ A CAPACIDADE PROTEÇAO BIDIRECIONAL ELECTRICAL SPECIFICATIONS - FREQUENCY RANGE: 0 - 3 GHZ - PROTECTOR COMPLIES WITH: IEC / IEEE STANDARD - VSWR: 1:1.3 MAX (0 - 3 GHZ) - INSERTION LOSS: 0.4 DB MAX (0 - 3GHZ) - IMPEDANCE: 50 OHM - STANDARD GAS TUBE ELEMENT: DC BREAKDOWN VOLTAGE INDICATED: 90 V 20% - GAS TUBE IMPULSE BREAKDOWN VOLTAGE: 1000 V 20% - GAS TUBE INSULATION RESISTANCE: 10,000 MO - MAXIMUM WITHSTAND CURRENT: 5 KA MECHANICAL SPECIFICATIONS - CONNECTORS COMPLY WITH: MIL-C-71A, 39012 STANDARD - CONNECTORS TYPES: N-MALE TO N-FEMALE BULKHEAD - CONNECTOR BODY MATERIAL: NICKEL PLATED BRASS - BODY MATERIAL: ALUMINUM - PIN MATERIAL: GOLD PLATED BRASS - O-RING MATERIAL: RUBBER - BRACKET MATERIAL: ALUMINUM - GROUND LUG: 10 AWG MAX. - DIMENSIONS (L X H X W): 82 MM X 40 MM X 20 MM- MAX. PANEL THICKNESS (BULKHEAD CONNECTOR): 0.312 (7.93 MM) THICK ENVIRONMENTAL SPECIFICATIONS - TEMPERATURE RANGE: -55C TO 85C- DUST AND WATERPROOF RATING: IEC 529 / IP65 - MOISTURE RESISTANCE: MIL-STD-202 METHOD 106D - SALT FOG: MIL-STD-202 101D/B - TEMPERATURE SHOCK: MIL-STD-202 107D/A-1 - VIBRATION: MIL-STD-202 METHOD 204D/B - SHOCK: MIL-STD-202 METHOD 213B/A - ROHS COMPLIANT: YES AL-NMNFB-9 PROTETOR CONTRA RAIOS HYPERLINK TAGS DE AL-NMNFB-9: AL-NMNFB-9, EQUIPAMENTOS WIRELESS, ACESSORIOS WIRELESS, HYPERLINK TECHNOLOGIES
