Especificações Técnicas

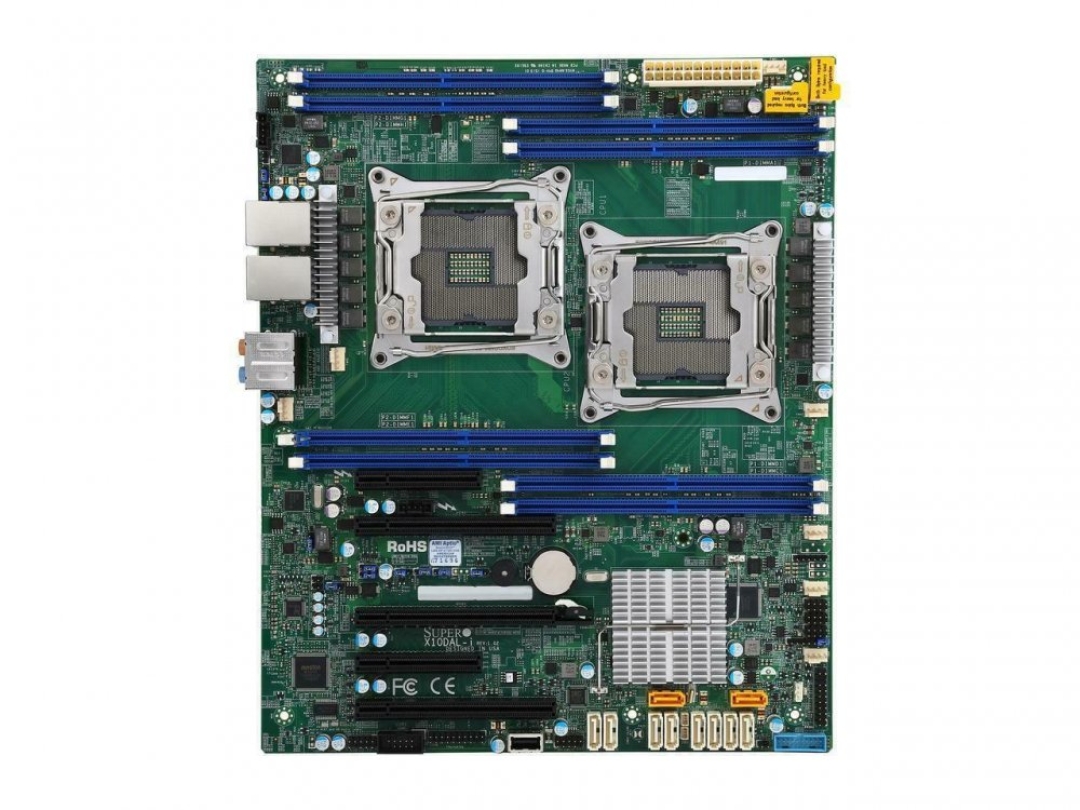

OUTROS NUMEROS DE PEÇA PARA ESTE COMPONENTE: X10DAL-I DUAL SOCKET R3 (LGA 2011) SUPPORTS INTEL XEON PROCESSOR E52600 V3 FAMILY; QPI UP TO 9.6GT/S INTEL C612 CHIPSET UP TO 512GB LRDIMM / 256GB RDIMM ECC DDR4 2133MHZ; 8X DIMM SLOTS 2X PCIE 3.0 X16, 1X PCIE 3.0 X8 (IN X16), 1X PCIE 3.0 X4 (IN X8), 1X PCIE 2.0 X4 (IN X8) SLOT INTEL I210 DUAL PORT GBE LAN 10X SATA3 (6GBPS) PORTS W/ INTEL C612 CONTROLLER; RAID 0, 1, 5, 10 6X USB 3.0 (4 REAR, 2 VIA HEADER) 3X USB 2.0 (2 VIA HEADER, 1 TYPE A) 7.1 HD AUDIO WITH OPTICAL S/PDIF THUNDERBOLT ADDON CARD SUPPORT   PRODUCT SKUS MBDX10DALI B X10DALI (BULK PACK) MBDX10DALI O X10DALI (RETAIL PACK) PHYSICAL STATS FORM FACTOR ATX DIMENSIONS 12 X 10, (30.5CM X 25.4CM) PROCESSOR/CACHE CPU INTEL XEON PROCESSOR E52600 V3 FAMILY (UP TO 160W TDP **) DUAL SOCKET R3 (LGA 2011) CORES / CACHE UP TO 18 CORES / UP TO 45MB CACHE SYSTEM BUS QPI UP TO 9.6 GT/S NOTE ** MOTHERBOARD SUPPORTS THIS MAXIMUM TDP. PLEASE VERIFY YOUR SYSTEM CAN THERMALLY SUPPORT SYSTEM MEMORY MEMORY CAPACITY 8X 288PIN DDR4 DIMM SLOTS UP TO 512GB ECC LRDIMM, 256GB ECC RDIMM MEMORY TYPE 2133/1866/1600MHZ ECC DDR4 SDRAM 72BIT DIMM SIZES RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB MEMORY VOLTAGE 1.2 V ERROR DETECTION CORRECTS SINGLEBIT ERRORS ONBOARD DEVICES CHIPSET INTEL C612 CHIPSET AHCI SATA SATA3 (6GBPS); RAID 0, 1, 5, 10 SCU SATA SATA3 (6GBPS); RAID 0, 1, 5, 10 NETWORK CONTROLLERS INTEL I210 DUAL PORT GIGABIT ETHERNET SUPPORTS 10BASET, 100BASETX, AND 1000BASET, RJ45 OUTPUT INPUT / OUTPUT SATA 10X SATA3 (6GBPS) PORTS LAN 2X RJ45 GIGABIT ETHERNET LAN PORTS USB 6X USB 3.0 PORTS (4 REAR 2 VIA HEADER) 3X USB 2.0 PORTS (2 VIA HEADER 1 TYPE A) AUDIO 7.1 HD AUDIO WITH OPTICAL S/PDIF SERIAL PORT / HEADER 1X COM PORT (1 HEADER) DOM 2X SUPERDOM (DISK ON MODULE) PORTS TPM 1X TPM 1.2 20PIN HEADER MBD-X10DAL-IO SUPERMICRO MAINBOARD SERVER INTEL DUAL LGA 2011-3 TAGS DE MBD-X10DAL-IO: MBD-X10DAL-IO, MBDX10DAL-IO, X10DAL, E5-2696V4, X10DAI, X10DAX, MBD-X10DAI-O, LGA2011 V3, E5-2600, X10DAL-I, X10DAL-I, X10DAL-I-O,
