Especificações Técnicas

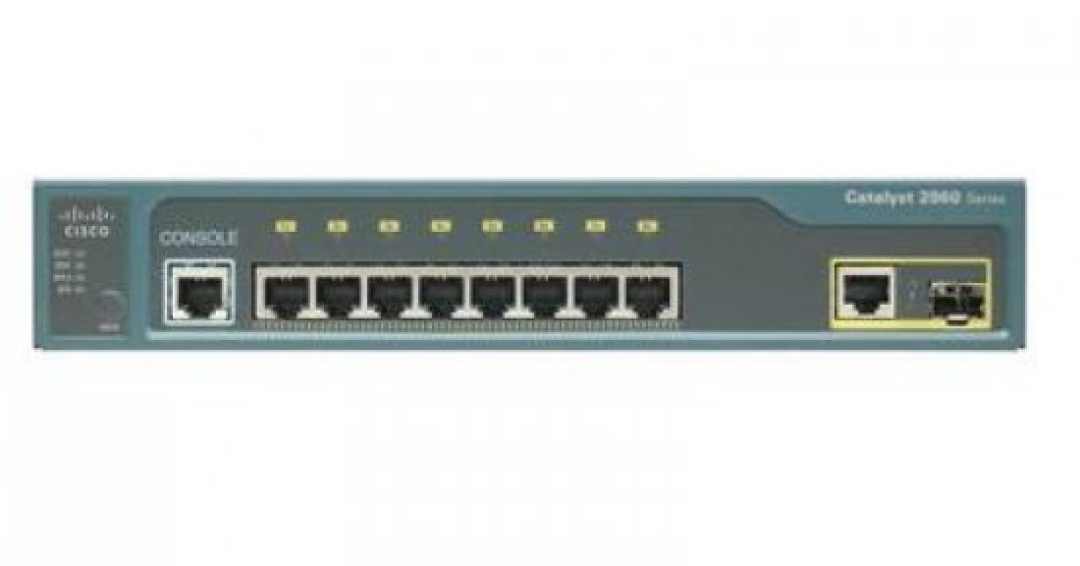

 CARACTERISTICAS:   PORTS: 8   TRANSMISSION RATE: 10/100MBPS   FUNCTION: POE, QOS, SNMP, VLAN SUPPORT   COMMUNICATION MODE: FULL-DUPLEX BRAND NAME: CISCO   MODEL NUMBER: WS-C2960C-8TC-L SPEIFICATIONS:TYPE OF SWITCH :ETHERNET SWITCH  TRANSMISSION SPEED:10/100  LAYER SUPPORT: 2  SWITCHING WAY:SAVE-TRANSMIT  FORWARDING RATE FOR 64-BYTE PACKET:16GBPS  MPPS: 2.7 MPPS  PORT TYPE: FIXED  STANDARD MEMORY: 64 MB DRAM, 32 MB FLASH MEMORY  MAC ADDRESS:8K(CISCO) WS-C2960-8TC-L  NETWORK SPECIFICATION  NET  STANDARD:  IEEE 802.1D, IEEE 802.1P, IEEE 802.1Q, IEEE 802.1S, IEEE 802.1W, IEEE 802.1X, IEEE 802.1AB (LLDP), IEEE 802.3AD, IEEE 802.3AH, IEEE 802.3X, IEEE 802.3, IEEE 802.3U, IEEE 802.3AB  NET MANAGEMENT :  SNMPV1, SNMPV2C, AND SNMPV3  STACKING FUNCTIONS:STACKABLE(CISCO) WS-C2960C-8TC-L PORT SPECIFICATION  PORT: 8  TYPE OF PORT:8 10/100 + 1 T/SFP LAN BASE IMAGE(CISCO) WS-C2960C-8TC-L OTHER  SPECIFICATION  OTHER FUNCTIONS  LAN BASE, ENHANCING SOFTWARE, BASIC PERFORMANCE,LOW POWER CONSUMPTION  SECURITY  UL 60950-1, FIRST EDITION CUL TO CAN/CSA 22.2 NO. 60950-1, FIRST EDITION TUV/GS TO EN 60950-1, FIRST EDITION CB TO IEC 60950-1 WITH ALL COUNTRY DEVIATIONS AS/NZS 60950-1, FIRST EDITION CE MARKING NOM   (CISCO) WS-C2960-8TC-L ELECTRICAL SPECIFICATIONS  INPUTE VOLTAGE: 100–240 VAC  POWER RATING: 20W(CISCO) WS-C2960-8TC-L APPEARANCE SPECIFICATIONS   DIMENTION: 44×270×205 MM WS-C2960C-8TC-L SWITCH CISCO 2960 10/100MBPS POE LAYER 2 MAIORES DETALHES DE WS-C2960C-8TC-L NO SITE DO FABRICANTE: HTTP://WWW.CISCO.COM/EN/US/PROD/COLLATERAL/SWITCHES/PS11527/PS11289/DATA_SHEET_C TAGS DE WS-C2960C-8TC-L: WS-C2960C-8TC-L, WS-C29608TCL, WSC2960C8TCL, STACKABLE, LAYER 2, L2 MANAGEMENT, SWITCH, CISCO SYSTEMS
